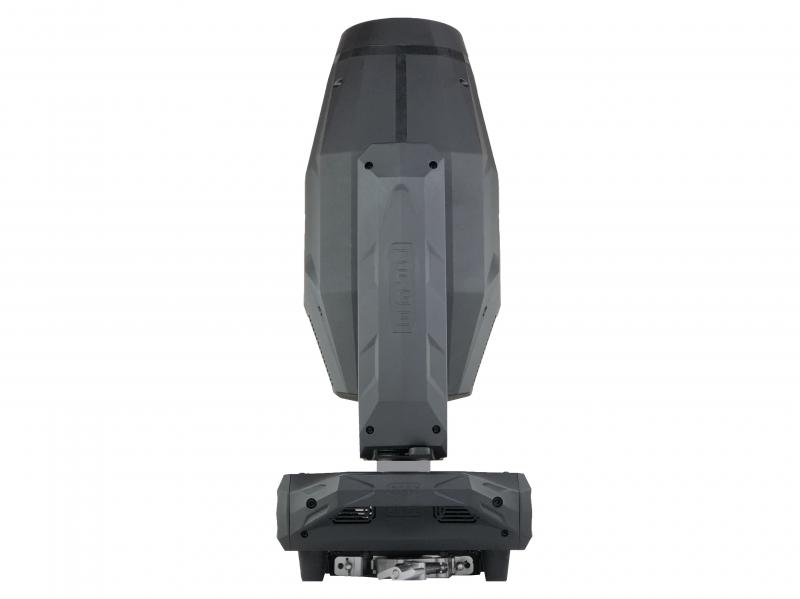

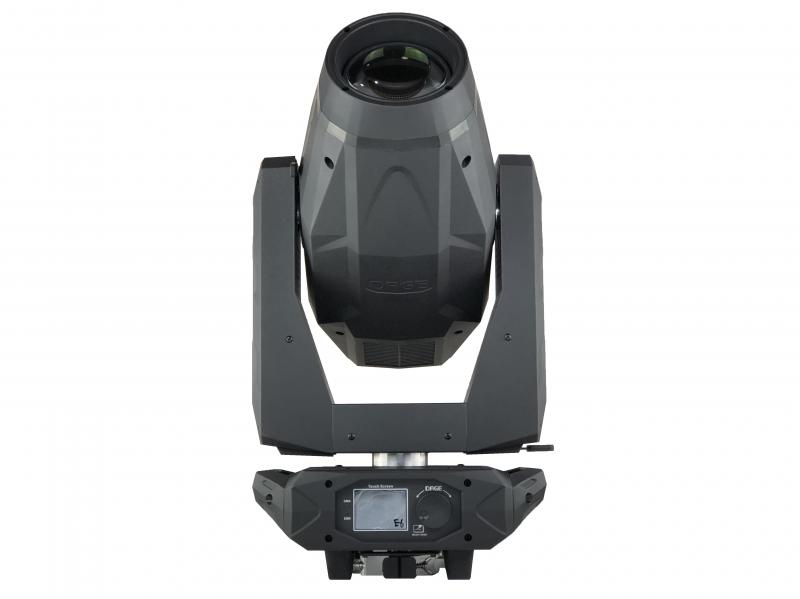

GM-3836 (380W) GIANT Beam/Spot/Wash 3 IN 1 - DAGE Stage Lighting - Stage Moving Head Light Manufacturer-DAGE Stage Lighting

Overview

★This is DAGE exclusive product: with R & D and design patents, any Infringement and Counterfeits will be prosecuted.★

ADVANTAGES:

1. Unique housing design, clear &compact structure, high quality & easy for maintaining.

2. Customized lamp OSRAM SIRIUS HRI 382W, constant current 650W/380V full power supply.

3. SUPER WIDE LINEAR ZOOM FROM 2.5-80°36 DMX channels.

4. Intensive beam & vivid 8 colors & 4 gobo wheels & wonderful 8/24/32 facet prism in 1.

5. Quite clear, smooth & bright spot, even in very slow speed, never shake, fuzziness or get stuck.
6. Sensitive & high speed, 3-phase motor for X/Y movement, positioning accuracy.

7.With RDM & CTO system, can set up the DMX address on the controller directly

8. 2 clamps fixed on the light base, easy for mobile shows.

9. Fixed battery for the LCD display, set up DMX address without electronic available.

OPTICAL SYSTEM

Original Customized lamp OSRAM SIRIUS HRI 382W, 7800K, 2500-3000hs
Italian heat-resistant glass material, Germanic coating technology, good dissipation
Optical lens dia. 128mm, the beam angle 2° makes the beam super uniform, sharp, bright.
Linear zoom: 2-80° (Including spot, frost & prism), in 2° the beam effect is the best
Automatic focusing, makes the beam & prism always in best effect

DISPLAY SYSTEM

Display mode 16 million pixel LCD touch screen, with sleep mode function
Lamp’s life & device using time is displayable
With Automatic error tested function
Two control mode: touch-wheel mode and non-contact, convenient to operate and read menu

CONTROL SYSTEM

International standard DMX512
36 control channels
RDM long-distance address editing available
DMX, random, auto, voice and sleep mode
Using high-tech constant current board, 36V / 24V voltage
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standards

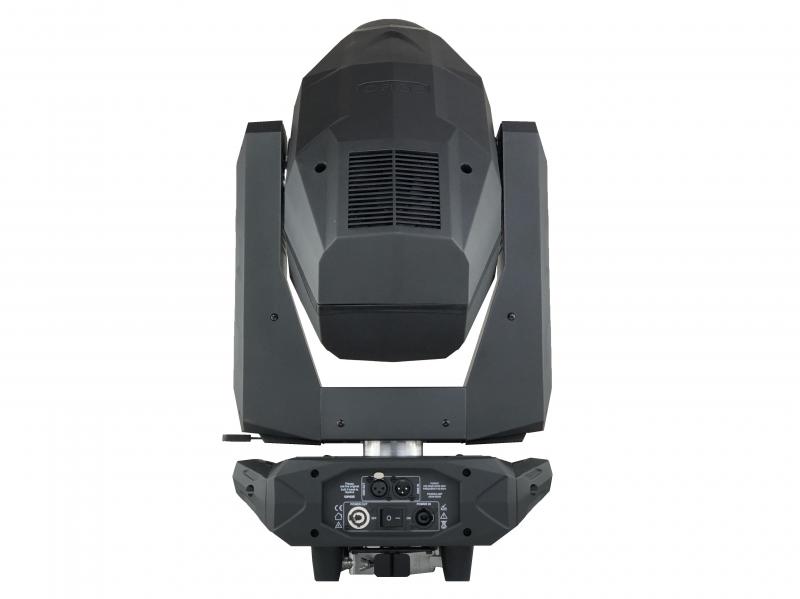

DATA INTERFACE

3-pin male and female DMX signal connectors
Blue & white power input & output connectors

POWER SYSTEM

Rated power: 650W, AC90－240V/50-60HZ
constant current PCB board, 650W/380V ballast, power fluctuations (± 50W) works normally
Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, and AC voltage mode
Ground wiring in accordance with international standard
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standards

STROBE SYSTEN

Independent double shutter, 0-14 times/s
0-100% linear dimming
The lamp power is automatically reduced by 40% when it turn off in 5 seconds
Remote control switch and boot light function for bulb, default as remote control

COLOR SYSTEM

Color wheel: 1 color wheel with 8 colors + open
Linear CTO; with CTO linear color temperature system to solve the problem of remote surface lighting.
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect. Automatic error correction at any angle with hall, magnet positioned
Imported Italian specialty heat resisting materials, Germanic high-tech coating technology

GOBO SYSTEM

4 different gobo wheels
Static (metal) gobo wheel：10 gobo+white+Animated gobos.
Animated(metal) gobo wheel: Open+Iris+3 arc Animated gobo, angle adjustable
Metal effect gobo wheel: Open+4 gobos+ Animated gobo, can be overlap with Rotating for more spot effect.
Rotating gobo wheel: 7 interchangeable gobo + open, the biggest angle is 52°
The rotating gobo and animative gobo overlapping will create more unique & amazing spot effects., rotation angle can be adjusted. Imported Italian specialty refractory metal materials. Automatic error correction at any angle with hall, magnet position

FROST SYSTEM

Frost: divided frost plate setting, high penetration frost lens
Frost effects: Various changes of frost effects combine with gobo wheel and color wheel
Frost angle: The largest is 60°

PRISM SYSTEM

8/24/32 prism in 1
8 independent facet prism
24 independent facet prism
8+24 prism will create 32 prism
The prism rotating angle is adjustable, up to 80°
Prism Material: Italian heat-protecting glass. Germanic high-tech coating technology

COOLING SYSTEM

Frame material: light and excellent aluminum material, good heat dissipation
Fan Qty: 2 mute cooling fans in the bottom of the light, 3 intelligent & mute fans for the lamp cooling
Thermal protection: Built-in overheating protection, the fan’s speed will increase and decrease automatically according to the temperature

ROTATION SYSTEM

X/Y motor: Fast and quiet 3-phase motors
X/Y position: Encoder& Hall components position and advanced scanning memory function
Pan: 540°(16/32 bit), 2.5 sec.
Tilt 260 °（16/32 bit), 1.6 sec.

LIGHTING DESIGN

Metal Plate design: DADE patented, creative high quality raw material
Housing design: unique DAGE patented design, user-friendly, nice looking, tough and neat

REMARKS: DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
