Overview

★This is DAGE exclusive product: with R & D and design patents, any Infringement and Counterfeits will be prosecuted.★




ADVANTAGES:

1. The latest multifunctional Beam/Spot/Wash/Cutting 4 in 1+CMY & CTO.

2. Unique housing design, advanced Domestic-foreign combine technology, 36CH .

3. Customized lamp USHIO 480W, 7800K, 3000h, constant current 800W/380V full power supply.

4.  Beam angle: 2 degree, LINEAR ZOOM FROM 2-80°extremely Intensive & high light output.

5.  Built-in 1 color wheel, 3 gobo wheels, wonderful 8/24/32 prism, Framing +CMY System.

6.  Quite clear, smooth & bright spot, never shake, fuzziness or get stuck in very slow speed.

7.  Sensitive & high speed, 3-phase motor for X/Y movement, positioning accuracy.

8.  With RDM & CTO system, can set up the DMX address on the controller directly

9.  folding clamps fixed on the light base, easy for mobile shows.

10.  Fixed battery for the LCD display, set up DMX address without electronic available.

DAGE Stage Lighting With strong R&D capabilities + production strength, present you the most exquisite "GW-4836 GIANT", focusing on creating mid-to-high-end performances for you.



OPTICAL SYSTEM
Original Customized lamp USHIO 480W, 7800K, 3000h
Italian heat-resistant glass material, Germanic coating technology, good dissipation
Optical lens dia. 142mm, the beam angle 2° makes the beam super uniform, sharp & bright.
Linear zoom: 2-80°Automatic focusing, makes the beam & prism always in best effect.

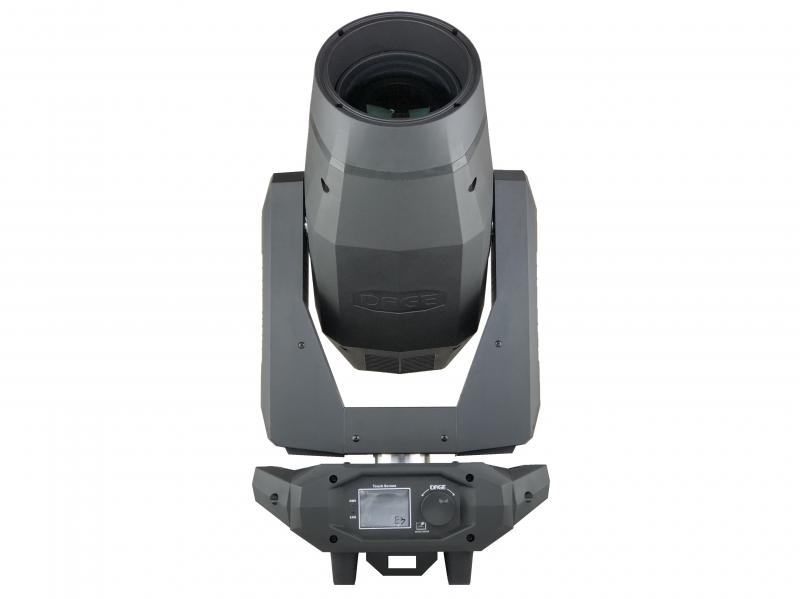

DISPLAY SYSTEM
Display mode 16 million pixel LCD touch screen, with sleep mode function
Lamp’s life & device using time is displayable
With Automatic error tested function
Two control mode: touch-wheel mode and non-contact, convenient to operate and read menu
CONTROL SYSTEM
International standard DMX512
36 DMX512 control channels
RDM long-distance address editing available
DMX, random, auto, voice and sleep mode
Using high-tech constant current board, 36V / 24V voltage
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standards

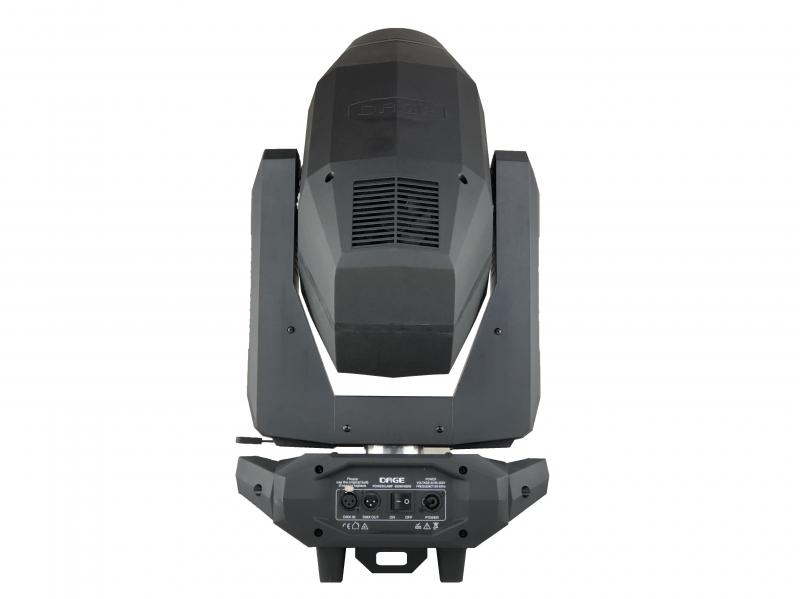

DATA INTERFACE
3-pin male and female DMX signal connectors, 5-pins will be available as required,
Blue & white power input & output connectors
POWER SYSTEM
Rated power: 800W, AC90－240V/50-60HZ
constant current PCB board,  power fluctuations (± 50W) works normally
Voltage/Frequency: AC90-260V/50-60HZ wide-voltage switching power supply developed independently, which can meet the voltage and frequency requirements of different countries in the world. Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, and AC voltage mode, Ground wiring in accordance with international standard.Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standards
STROBE SYSTEN
Independent double shutter, 0-14 times/s
0-100% linear dimming
The lamp power is automatically reduced by 60% when it turn off in 5 seconds
Remote control switch and boot light function for bulb, default as remote control
COLOR SYSTEM
Color wheel: 1 color wheel with 11 colors + open,
Linear CTO; with CTO linear color system to solve the problem of remote surface lighting.
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect. Automatic error correction at any angle with hall, magnet positioned
Imported Italian specialty heat resisting materials, Germanic high-tech coating technology
CMY SYSTEM
Color chip quality: Imported from Italy, special high temperature resistant raw materials, high-tech coating technology from Germany, to achieve strong and bright vividness.
Color mixing effect: CMY linear and infinite color mixing can meet the needs of stage performance in specific theaters and related high-demand places.
GOBO SYSTEM
3 different gobo wheels
1 Static (metal) gobo wheel：11 gobos+white+Animated gobos.
1 Animated(metal) gobo wheel: 6 gobos+Iris+2 arc Animated gobo, angle adjustable
1 Rotating gobo wheel: 7 interchangeable gobo + open, the biggest angle is 52°
Gobo quality: Imported from Italy, special high temperature resistant raw materials, high-tech coating technology from Germany, to achieve strong and bright vividness.
Unique & amazing spot effects., rotation angle can be adjusted. Imported Italian specialty refractory metal materials. Automatic error correction at any angle with hall, magnet position

FRAMING(CUTTING) SYSTEM
Slicing material: 4 new high-quality high-temperature resistant materials are used.
Cutting effect: fast and smooth cutting, each cutting direction, speed and angle can be independently controlled.
Cutting angle: The entire cutting die plate can be moved smoothly and accurately positioned, and can be rotated at an angle of ±60 degrees.
FROST SYSTEM
Frost adjustment: independent atomization mirror device, realized by electric focusing, uniform and soft spot.
Frost effects: Various changes of frost effects combine with gobo wheel and color wheel
Frost angle: 3-50°linear adjustable, the largest is 60°
PRISM SYSTEM
8/24/32 prism in 1
8 independent facet prism
24 independent facet prism
8+24 prism will create 32 prism
The prism rotating angle is adjustable, up to 80°
Prism Material: Italian heat-protecting glass. Germanic high-tech coating technology
COOLING SYSTEM
Frame material: light and excellent aluminum material, good heat dissipation
Fan Qty: 2 mute cooling fans in the bottom of the light, 3 intelligent & mute fans for the lamp cooling
Thermal protection: Built-in overheating protection, the fan’s speed will increase and decrease automatically according to the temperature
ROTATION SYSTEM
X/Y motor:High-end, Fast and quiet 3-phase motors
X/Y position: Encoder& Hall components position and advanced scanning memory function
Pan: 540°(16/32 bit),  2.5 sec.
Tilt 260°(16/32 bit), 1.6 sec.
LIGHTING DESIGN
Internal design: In accordance with international standards, humanized multi-module structure, using streamlined ABS flame-retardant high-temperature resistant engineering plastics and high-strength alloy core materials, DAGE strength design, independent design patent, counterfeiting must be investigated.
