Overview

★This is DAGE exclusive product: with R & D and design patents, any Infringement and Counterfeits will be prosecuted.★

ADVANTAGES:

1. 2020 The latest Sky-touch Beam 480W+linear CTO.

2. Customized Philips lamp MSD Platinum 480W, 7800K, 3000h.

3. Extremely powerful, uniform & clean beam effect, fresh & vivid color.

4. Fantastic & colorful honeycomb prism+ 8 facet prism, will achieve unique 58/66/83 prism.

5. Auto-focusing function,sensitive & high speed, positioning accuracy.

6. With RDM system, can set up the DMX address on the controller directly.

7. folding clamps fixed on the light base, easy for mobile shows.

8. Fixed battery for the LCD display, set up DMX address without electronic available.

DAGE Stage Lighting With strong R&D capabilities + production strength, present you the most exquisite "AW-4820 Sky-Touch Beam", focusing on creating mid-to-high-end performances for you.

OPTICAL SYSTEM

Customized Philips lamp MSD Platinum 480W, 7800K, 3000 hrs life
Italian heat-protecting glass, good dissipation
With special Optical lens structure, the lens’s dia.up to 165mm
2-50° beam and frost angle.
Auto beam and prism focusing function

DISPLAY SYETEM

Display mode 20 million pixel LCD touch screen, with sleep mode function
Lamp’s life & device using time is displayable
With Automatic error tested function
LCD touch and knob control mode

CONTROL SYSTEM

International standard DMX512
20 control channels
DMX, random, auto, voice and sleep mode
Using high-tech constant current board, 36V / 24V voltage
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standard

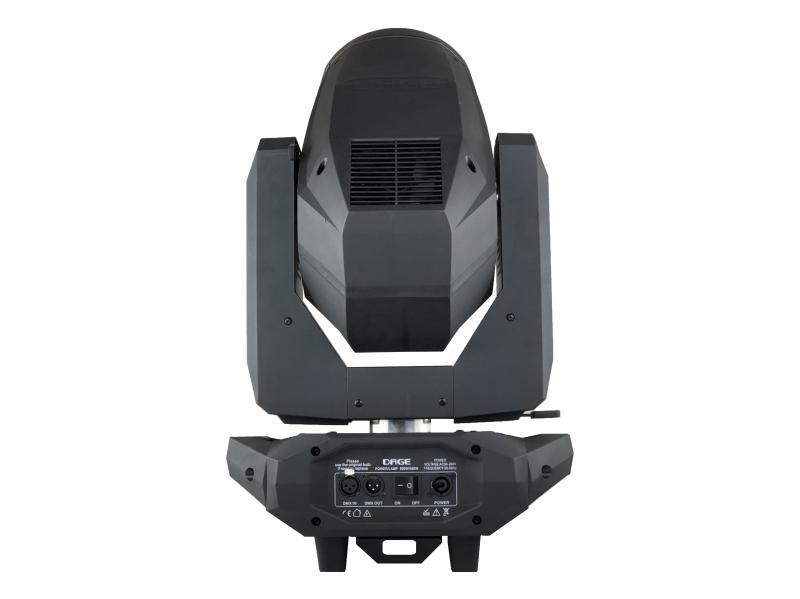

DATA INTERFACE

3-pin male and female connector
2. 3-pin combines 5-pin male and female connectors

POWER SYSTEM

Power supply 800W, power fluctuations (± 50W) works normally
AC90－240V/50-60HZ
Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, AC voltage mode
Ground wiring in accordance with international standards
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standard

POWER INTERFACE

Three-pin male and female data interface, dual hand in hand power interface

STROBE SYSTEN

Independent double shutter device, 0-14 times/s
0-100% linear dimming
The lamp power is automatically reduced by 30% when it turns off in 5 seconds
Remote control switch and boot light function for bulb, default as remote control

COLOR SYSTEM

2 color wheels
1 fixed color wheel, 10 colors+open+linear CTO
1 six-color Rainbow wheel
Imported Italian specialty high temperature materials, Germany's high-tech coating technology
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect
Automatic error correction at any angle with hall, magnet positioned

GOBO SYSTEM

1 metal gobol wheel,11 gobos+ Animatic gobo + open, 4 class adjustable beam angle.
Imported Italian specialty refractory metal materials
Automatic error correction at any angle with hall, magnet positioned

FROST SYSTEM

Frost setting: Independent single-sided high penetration frost lens
Frost effect: Various changes of frost effects
Frost angle: The largest is 50°

PRISM SYSTEM

Independent honeycomb prism(24)+ 8 facet prism, will achieve unique 58/66/83 prism effect
Prism Material: Italian heat-protecting glass. Germany's high-tech coating technology
Rotating angle is adjustable.

COOLING SYSTEM

Excellent aluminum material, good heat dissipation and light weight
Fan Qty: 6pcs
Thermal protection: Built-in overheating protection

ROTATION SYSTEM

XY motor: Fast and quiet 3-phase motor
XY position: Encoder& Hall components position and advanced scanning memory function
Pan:540° (16/32 bit)
Tilt 270 ° (16/32 bit)

REMARKS: DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
