Overview

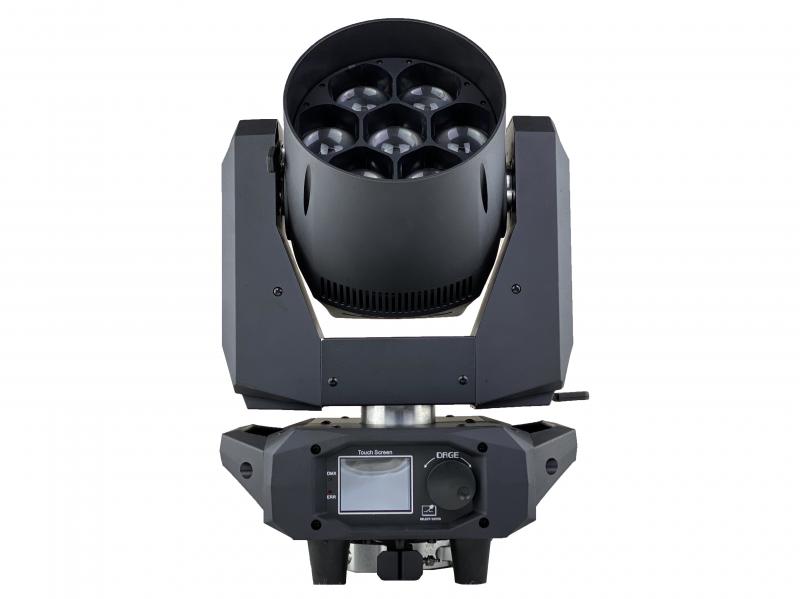

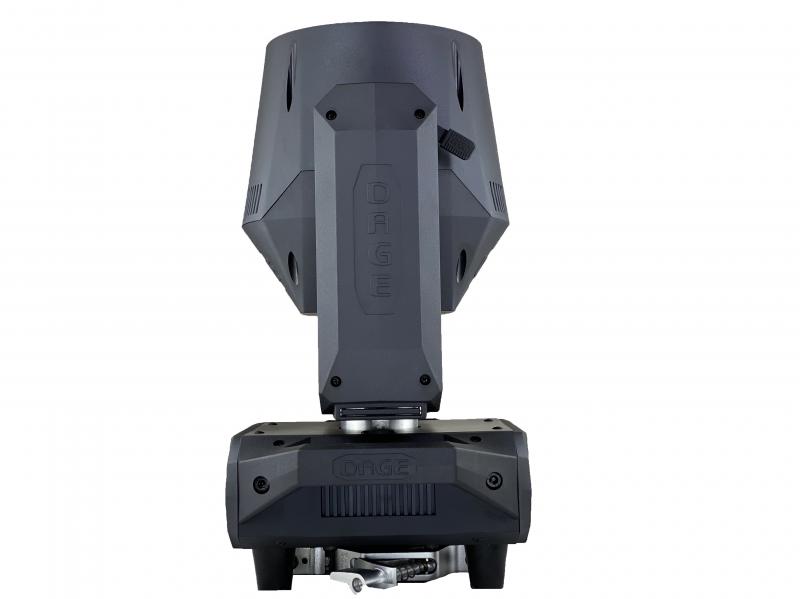

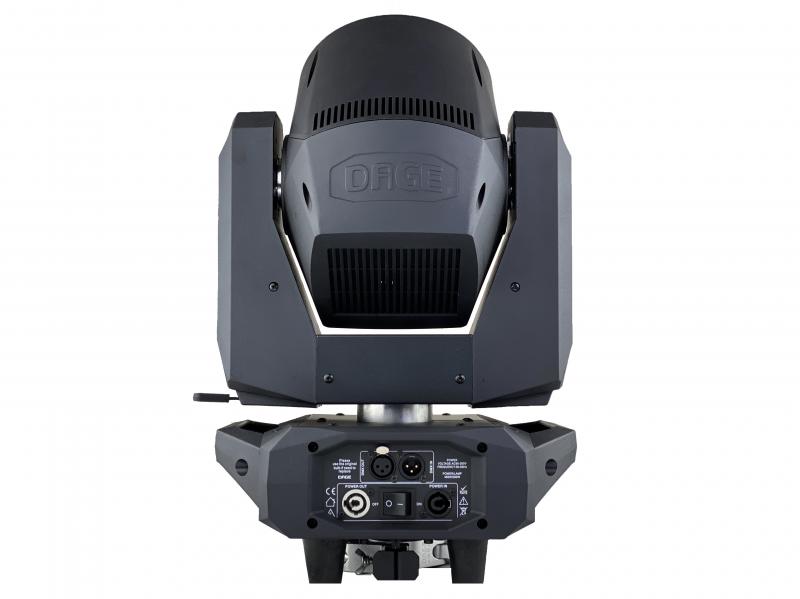

DA-7016 SMART EYES

7*40W LED Pixel BEAM WASH

DA-7016 Smart Eyes is a intensive, fresh color with pixel function led beam wash moving head light. It combines with high-quality materials and high-tech design at China and overseas; three-phase motors, constant current circuit board and full power 450W electronic ballast, 36V and 12V dedicated voltage, with ultra-precise positioning and strong anti-interference ability, Linear zoom: 6-45°convenient& saving labor-costs folding clamps, built-in battery, without power to code address code is available, with point control, circle control &RDM function, jump Varying and gradual dyeing colors; color temp.:2,500K-10,000K linear adjustable to solve the problem of long and short stage illumination. Full, uniform, bright, superior beam and dyeing effects are the first choice of lighting engineers.

Power System

Rated power: 450W, power mutual compensation, fluctuation (± 50W) environment can also be used normally.
Voltage/Frequency: The independently developed AC90-260V/50-60HZ wide voltage switching power supply can meet the voltage and frequency requirements of different countries around the world.
Power quality: The use of high-tech constant current power supply board, all PCB components are selected first-class brands at home and abroad, AC for voltage mode, the output voltage stability, long working life and high anti-interference ability.
Lamps and wires: Hand-in-hand power cords and signal wires, cold and frost-proof, in line with CE, GB7000.15-2000 and CE20/CE22 standards.

Control System

Control Protocol: international Standard DMX512 Control Protocol.
Control channel: 16 & 42control channels.
Control mode: DMX mode, random mode and voice control mode are optional.
Line board: high-tech constant current circuit board, 36V and 12V supply voltage, strong anti-interference ability, all PCB components are selected first-class brands to ensure that each electronic component works long-term and stable.

Optical System

Light source: Brand LEDs, 12*40W RGBW full color, 30,000 hours, durable using, good temp. resistance and chemical corrosion resistance. High technology, light output rate and leds life to get the best guarantee effect. It is purely from DAGE Lighting.
Beam angle: 6-45°, full, uniform, bright, superior wash.

Display System

Display mode: 20 million pixel color LCD touch screen; built-in self-rechargeable buffer battery, edit menu under no power state; screen can display upright, inverted, and background brightness adjustment.
Detection device: When there is an error in the lamp, an alarm device will appear, which is convenient for users to combine with the manufacturer and accurately solve the problem; in addition, each channel of the lamp can be detected to facilitate product maintenance.
Control mode: 1. Touch mode; 2. Non-contact scroll wheel mode.
Debugging device: For the convenience of manufacturers and users, the advanced settings of the menu and password can be used to debug the horizontal, vertical, and focus functions of the lamp source.

Color System

Color mixing effect: uniform RGBW unlimited color mixing system is composed of very rich colors. Each color can be individually controlled by DMX512 signal, and the colors are mixed to create a variety of effects.
Color temperature adjustment: 2500～10000K, one-key color temperature adjustment, can meet the lighting engineer's needs for stage lighting in time.

Cooling System

Material:high-quality aluminum material, good cooling effect and light weight.
Built-in a silent cooling fan, intelligently controlled, heat dissipation is
intelligently controlled according to the use status and requirements of the light
beads to ensure that the entire light’s body is always maintained in the
predetermined temperature range.
Heat dissipation protection: Built-in overheating protection, the fan automatically
tracks the temperature and intelligently adjusts, so that the parts of the lamp are
kept in a lower temperature environment, which can extend the service life.

Rotation System

X/Y motors: All are driven by three-phase motors, powerful&faster, more stable and
quieter. XY positioning: using encoder and Hall positioning at the same time,
advanced scanning position memory function, making the step angle smaller,
positioning more accurate, absolute position memory, DMX offline power-off
position recovery or maintenance, accidental misoperation can be automatically
resolved Cable correction, with strong enough anti-interference ability.
X-axis : 540°, 16/32bit, accuracy 2.62°/step, fine-tuning 0.018°, rotation:2.1 sec.
Y-axis: 260°, 16/32bit, accuracy 2.12°/step, fine-tuning 0.016°, rotation: 1.2sec.

Light Design

Sheet metal design: in accordance with international standards, the integration of DAGE a strong design strength, the use of new high-quality materials to create, with independent lamp body design patents.

Lamp body design power and signal lines hand in hand.

Shell design: user-friendly multi-sets of module structure, using streamlined ABS flame-retardant high temperature engineering plastics and high-strength alloy cold forming core material, beautiful and tough, with its own lamp body and design patents, counterfeiting will be investigated.
