Overview

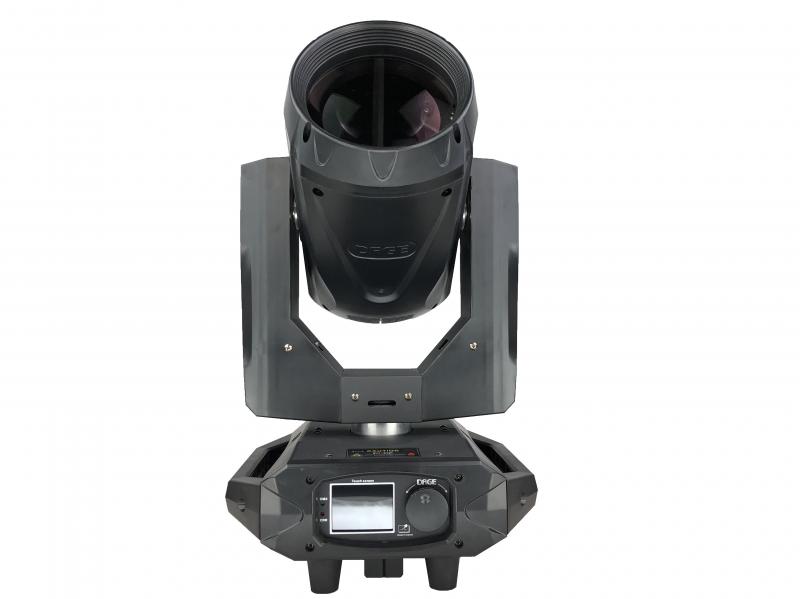

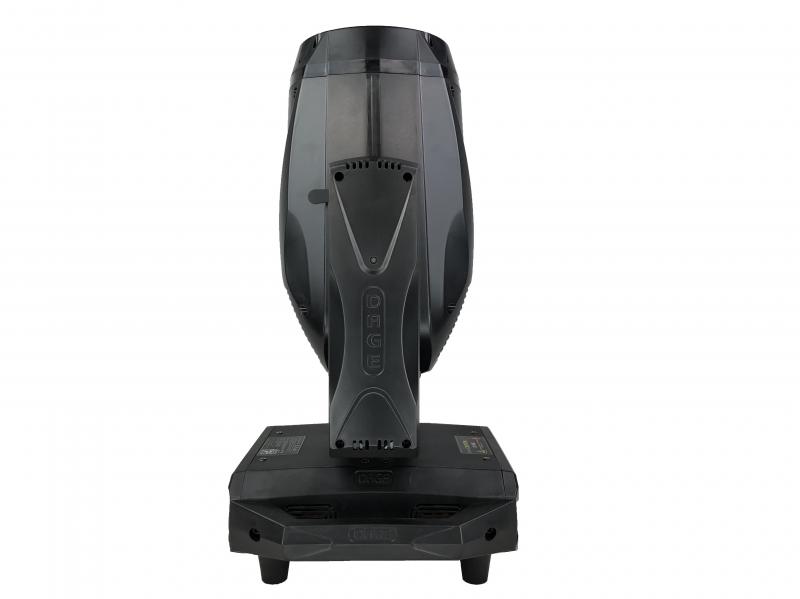

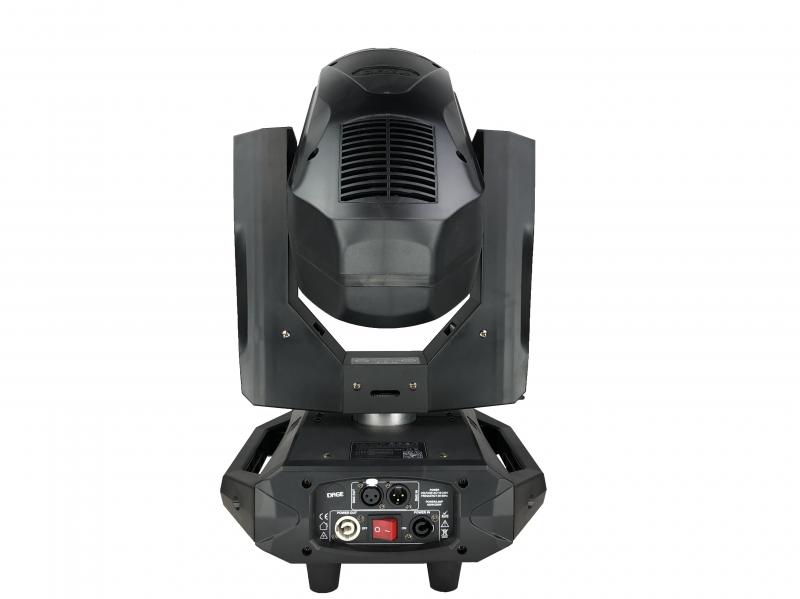

FM-3520 Beast Machine Beam Light 350W 17R

MAIN FEATURES:

Small, compact, high-efficient, fast speed with 3 phase motor, good quality materials, constant PCB, accurate positioning, anti-interference

DAGE optical lens for super beam, 400W 380V power supply for 36v, 24v, 12v

1 color wheel with 14 colors + white, 1 metal gobo wheel with 13 gobos + white

Independent 8 prisms & honeycomb prism, largest angle: 80°, realize 8 + 24 + 48 prisms, Auto prism focus

Edit address with inner battery and console with RMD function, foldable clamps

REMARKS: DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.

OPTICAL SYSTEM

Lamp : Original PHILIPS Platinum 350W lamp ,which is low energy of reflection Cup and 8000K color temperature with good resistance mild resistance chemical corrosion effect. It gets guaranteed effect from UV reflection rate, output rate and 1500hs lifetime
Heat-absorbing glass: high temperature resistance material imported from Italy
Glass lens: special optical lens imported from Italy
Optical lens: 155MM diameters high rate light transmission of lens
Beam angle: 2-60° (including fog and prism angle).Max. brightness when it is up to 2° beam angle

Electronic Focus: adjustable focus distance, special light path is brighter

DISPLAY SYSTEM

Display Mode: 20 million pixel colorful touch screen. Editing menu without electricity
Detection System: Alarm system coming on light error condition
Operation Mode:1 .Touch; 2.Non-contact Wheel
Testing device: Accessing high-class menu by password

CONTROL SYSTEM

control : International standard DMX 512 signal
Channels: 20 channels
Control Mode: DMX mode, Mater-slave, Auto-run, Sound control
Circuit board: High-tech constant current circuit (for 36v/24v) using SMT Technology
Data transmission: built-in high-quality filters and magnetic ring
Data cable material: anti-freezing under CE20/22 standard

Data cable connection

1. Independently choosing 2 pieces 3-pin connector
2. 2 pieces 3-pin connector and 2 pieces 5-pin connector together

POWER SUPPLY SYSTEM

Power: 600W
Voltage: AC 110V-240V,50-60HZ
Power supply quality: high-tech constant current power supply
Ground wire setting :international standard
Interference prevention: built-in high quality filters and magnetic ring
Cable material: anti-freezing with CE20/22 standard
Power supply connection:
hand-in-hand double power supply connector

STROBE SYSTEM

High-speed strobe:0-14 flash/second
Linear dimmer:0-100% linear dimmer
Strobe protection: can be reduced 60% lamp power automatically after turning off 5s

COLOR SYSTEM

Color film: high temperature resistance material imported from Italy
Color: 14 colors white
Color wheel: half-color, full color, single color ,rainbow effect with clock &anti-clock rainbow effect
Color wheel positioning: Hall/magnet positioning, auto correct function

GOBO SYSTEM

1 Metal gobo: 13 gobo +white ,4 level adjustable beam angle with gobo-shaking , dynamic ,watering effect
Gobo quality: imported from Italy
Gobo positioning: automatic

ATOMIZATION SYSTEM

Setting: motorized focus, even and soft
Effect: various atomization changes
Angle: 60 degrees (Max. beam angle)

PRISM SYSTEM

Material: anti-temperature material imported from Italy
Independent 8 prism effect +Honeycomb prism
Effect: Adjustable rotated angle; Max. beam angle can be up to 80 degrees

swift between 8 prisms and 48 prisms (3D) and 72 prisms (3D)

COOLING SYSTEM

Material:new high quality aluminum
Fan quantity:1 cooling heat fan with low noise under light bottom;3 low noise fan set in lamp system
Protection: automatically adjusting temperature

ROTATING SYSTEM

XY motor: 3-phase motor driver
XY positioning: using encoders and hall
Pan:540° (16/32 bit)
Tilt:260 ° (16/32 bit)

LIGHT DESIGN

1.Sheet metal design: new high technology material under international standard
2.Cover design: streamline flame retardant ABS heat-resistant engineering plastics and cold forming of high strength alloy core material
