Overview

★This is DAGE exclusive product: with R & D and design patents, any Infringement and Counterfeits will be prosecuted.★

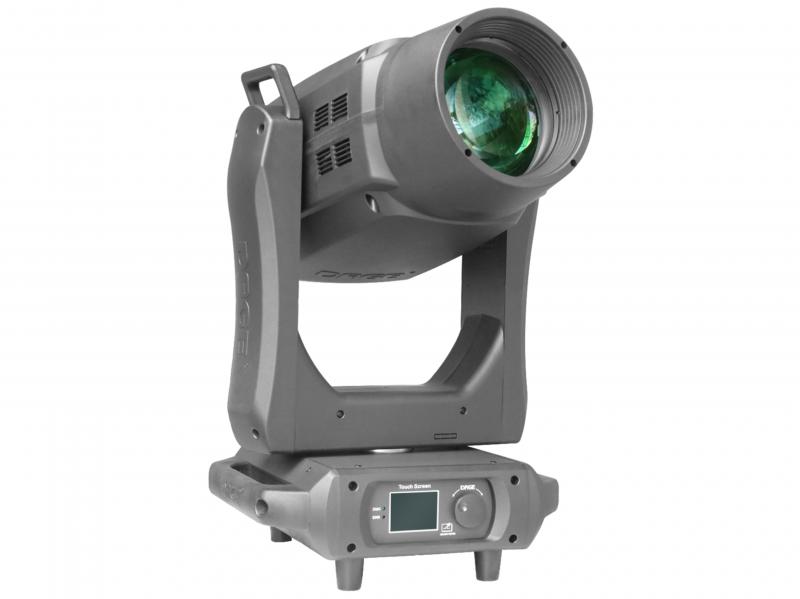

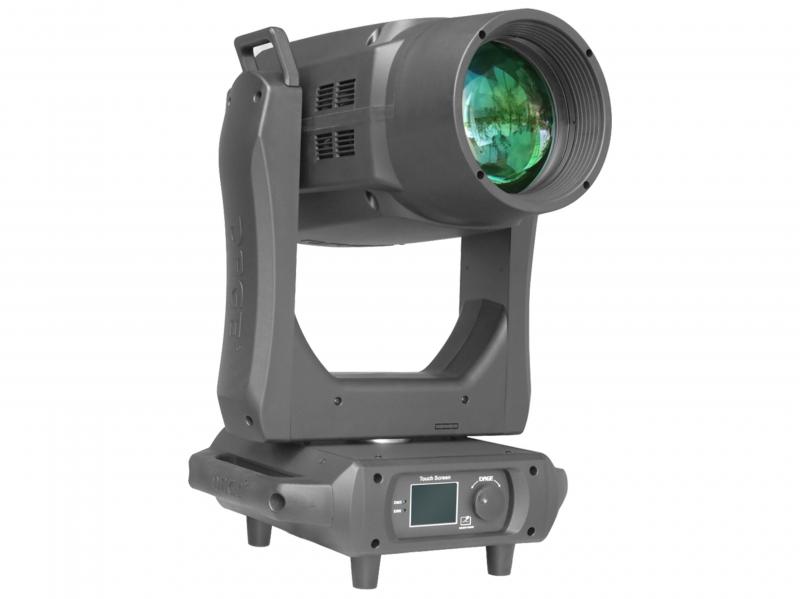

A8 is a LED Profile (also with multi-functional Beam/spot/wash/framing 4 in 1 +CMY & CTO), it was fixed with (DAGE customized) YLX module LED light source, color rendering index Ra≥95, 176mm inner lens’ diameter, tap out the greatest light effect potential and get the excellent and strong light effect output.

Uniform light spot, clear pattern, powerful & sharp beam! Linear zoom for beam & pattern from 6-50° Lumen is up to: 59x1000lm.DMX address editing via onboard battery powered menu is available, also able to set up the DMX address via RDM remotely. Integrated folding clamps, with independent CMY and CTO linear color &color temp. system, it solves the problem of long-distance illumination.

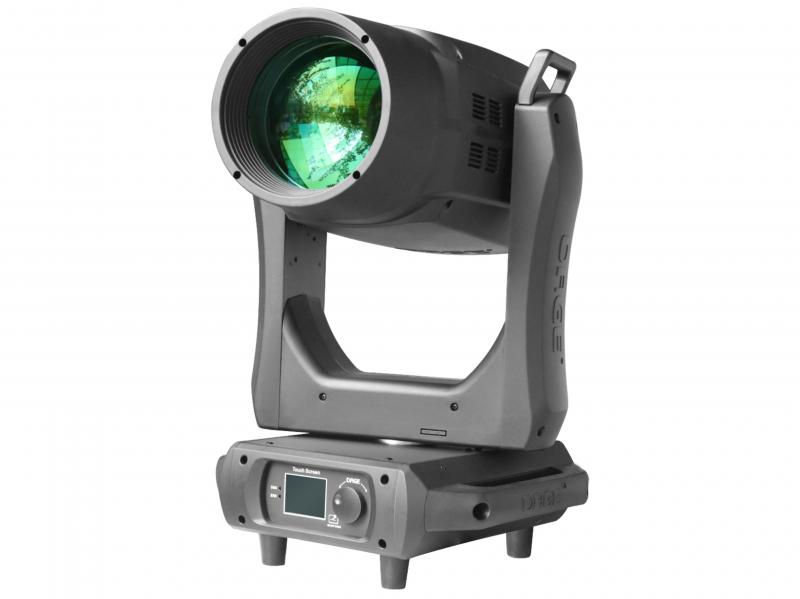

OPTICAL SYSTEM

Customized YLX module 800W LED, 6000K, life＞20000h
color rendering index Ra≥95
Glass lens: The tailor-made special optical lenses, from Italian heat-resistant material, Germanic coating technology, good dissipation.
Optical lens dia. 174mm, the beam angle: 6-50° makes the beam super uniform, sharp, bright.
Electronic focusing: Full-time linear and super smooth adjustment of the focal length, clear distance and distance can be adjusted arbitrarily, the unique light path structure makes the beam, pattern, prism and cutting effect perfect present.

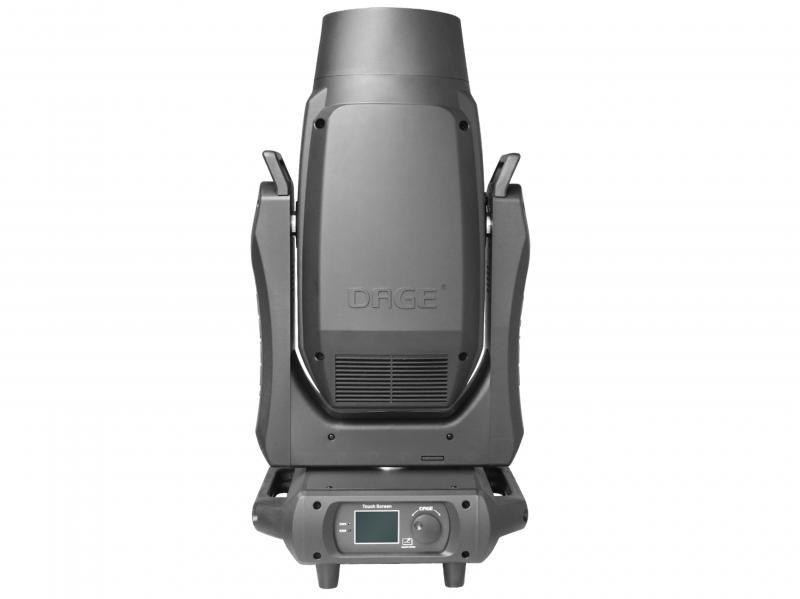

DISPLAY SYSTEM

Display mode 16 million pixel LCD touch screen, with sleep mode function
Lamp’s life & device using time is displayable
With Automatic error tested function
Two control mode: touch-wheel mode and non-contact, convenient to operate and read menu

CONTROL SYSTEM

International standard DMX512
32 control channels
RDM long-distance address editing available
DMX, random, auto, voice and sleep mode
Using high-tech constant current board, 36V / 24V voltage
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standards

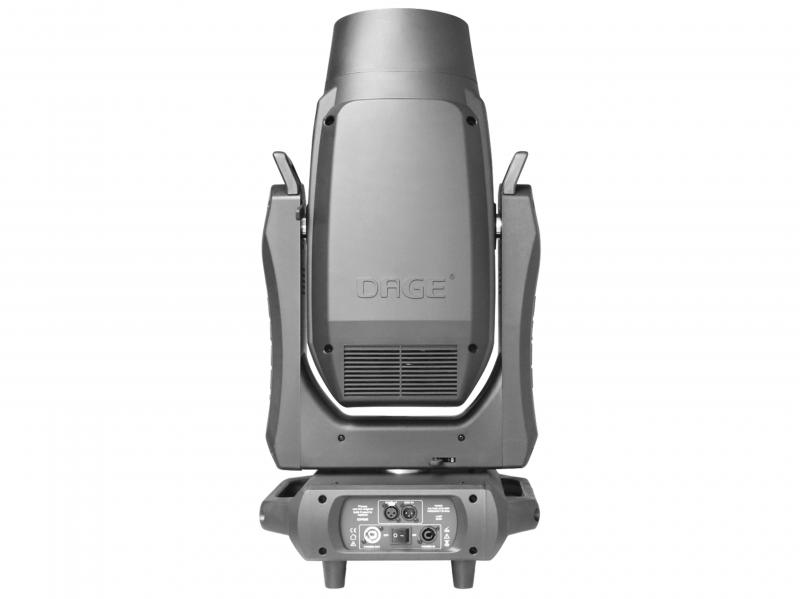

3-pin male and female DMX signal connectors
Blue & white power input & output connectors

POWER SYSTEM

Rated power: 1400W, AC90－260V/50-60HZ
constant current PCB board, power fluctuations (± 50W) works normally
Using high-tech constant current power board, first-class brand PCB components, AC dedicated voltage mode, stable output voltage, long working life, strong anti-interference ability.
Ground wiring in accordance with international standard
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standards

COLOR SYSTEM

Color wheel: 1 color wheel with 7 colors + open, Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect. Automatic error correction at any angle with hall, magnet positioned
Imported Italian specialty heat resisting materials, Germanic high-tech coating technology

CMY+CTO SYSTEM

Imported Italian specialty high temperature materials, Germany's high-tech coating technology, Achieve strong and bright vividness colors.
Color mixing effect: independent CMY stepless color mixing system and CTO linear color temperature system, which can meet the needs of stage performance in specific large and small theaters and related high-demand places.

GOBO SYSTEM

2 gobo wheels
1 Static (metal) gobo wheel:9 gobo+open
1 Rotation gobo wheel: 7 interchangeable gobo + open, the biggest angle is 52°
The static gobo and rotation gobo overlapping will create more unique & amazing spot effects. rotation angle can be adjusted. Imported Italian specialty refractory metal materials. Automatic error correction at any angle with hall magnet position.

PROFLE(CUTTING) SYSTEM

Slicing material: 4 new high-quality high-temperature resistant materials are used.
Cutting effect: fast and smooth cutting, each cutting direction, speed and angle can be independently controlled.
Cutting angle: The entire cutting die plate can be moved smoothly and accurately positioned, and can be rotated at an angle of ±60 degrees.

COOLING SYSTEM

Excellent aluminum material, good heat dissipation and light weight
Fan Qty: total: 6 pcs silent fans. 2 for based, 4 for lamp system, the fan is intelligently controlled, and the heat dissipation is intelligently controlled according to the lamp usage status and requirements to ensure that the entire lamp body is always maintained in a predetermined temperature range.
Thermal protection: Built-in overheating protection

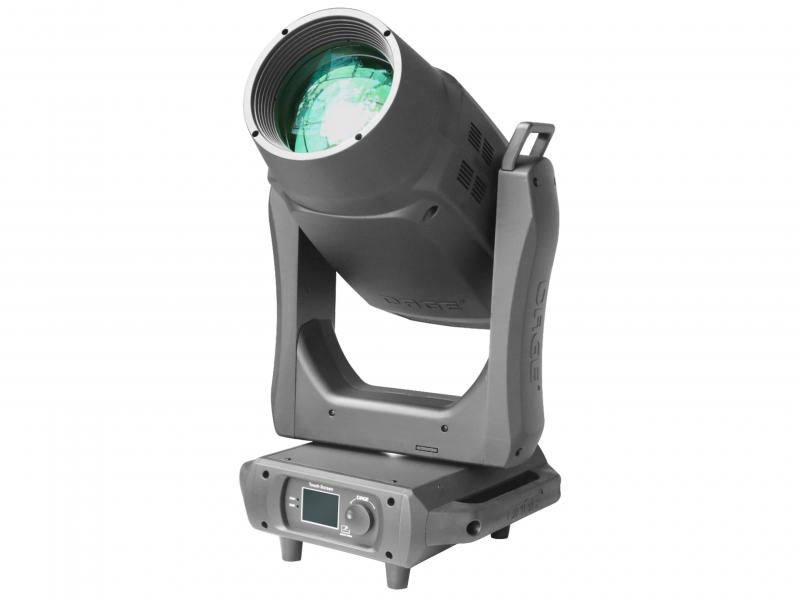

ROTATION SYSTEM

X/Y motor: All are driven by 3-phase motors, powerful, faster, more stable and quieter.
X/Y position: Encoder& Hall components position and advanced scanning memory function
using encoder and Hall positioning at the same time, advanced scanning position memory function, making the step angle smaller, positioning more accurate, absolute position memory, DMX offline power-off position recovery or maintenance, accidental misoperation can be automatically resolved Cable correction, with strong enough anti-interference ability.
Pan: 540 ° , 16/32bit, accuracy 2.62°/step, fine-tuning 0.018°, rotation: 2.5 sec.
Tilt 270 ° , 16/32bit, accuracy 2.12°/step, fine-tuning 0.016°, rotation: 1.6 sec.

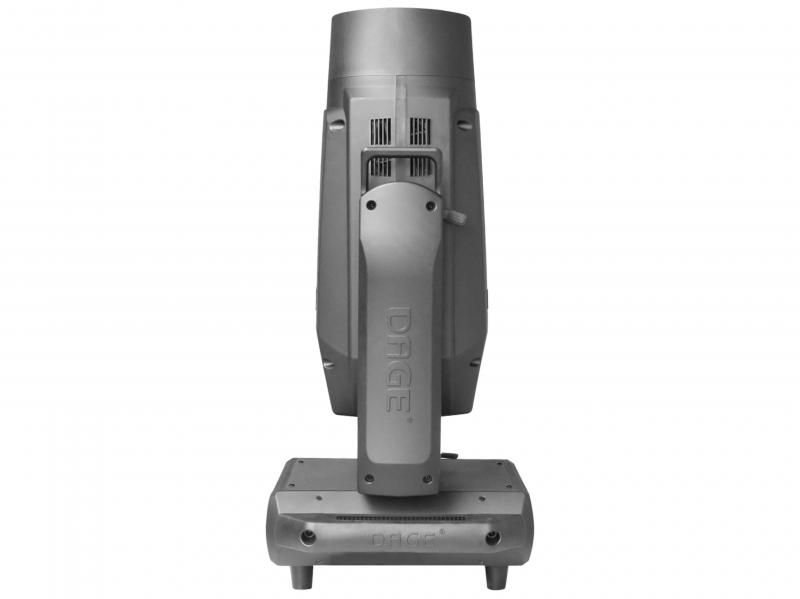

PRODUCT’S DESIGN

1. Internal design: In accordance with international standards and DAGE own design strength, it was made by new & superior quality materials.
2. Appearance design: user-friendly multi-module structure, with ABS flame-retardant high-temperature resistant engineering plastics and high-strength alloy cold-pressed core materials, with design patents, counterfeiting must be investigated.

PRODUCT’S SIZE

Body size: 44*38*82cm,
Net weight: 37.5GK
Packing size: xx*xx*xxcm, xx KG/carton packing 1 in 1
xx*xx*xxcm, xx KG/Flight case 2 in 1

REMARKS: DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
