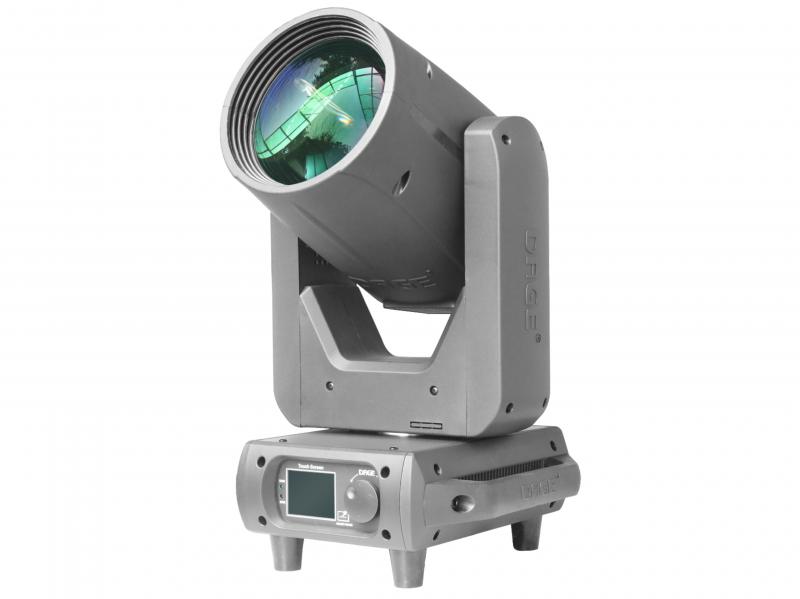

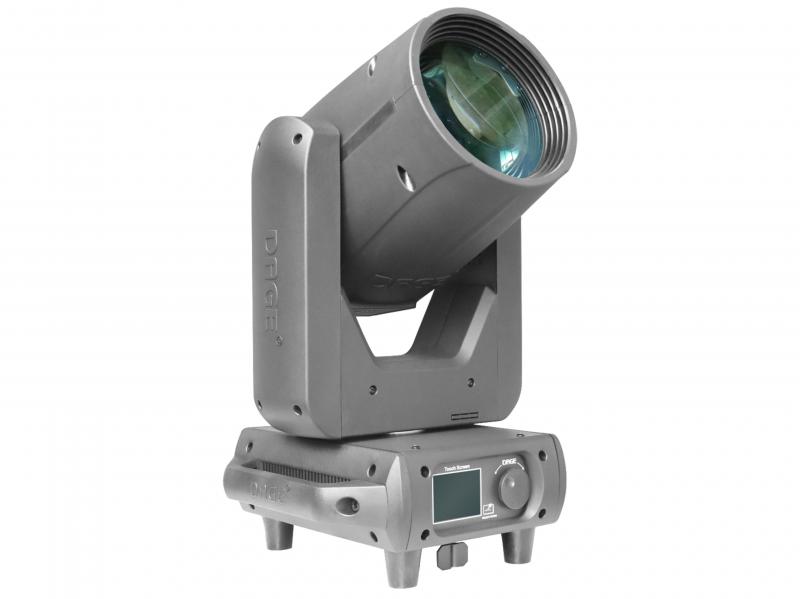

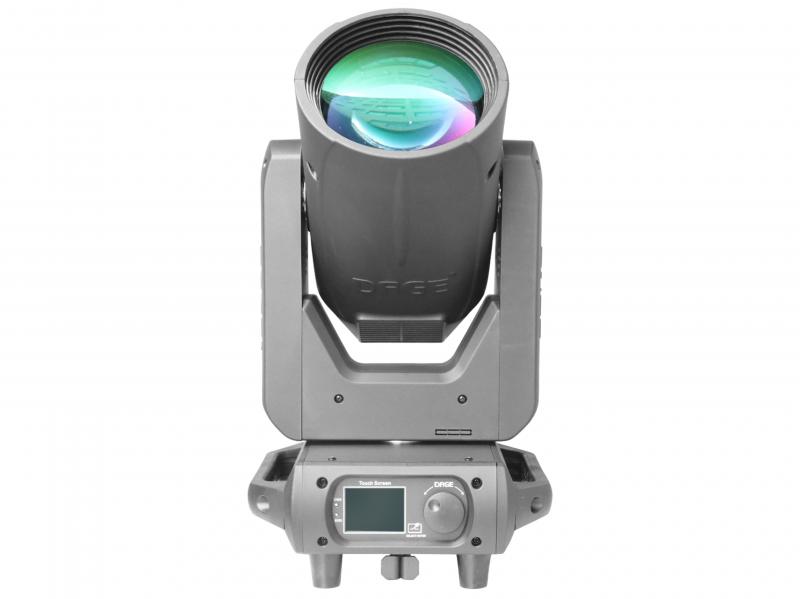

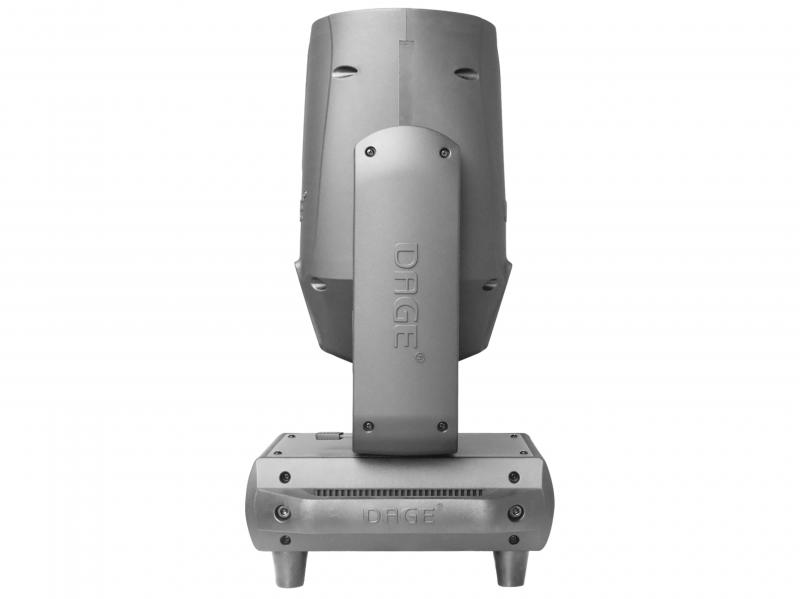

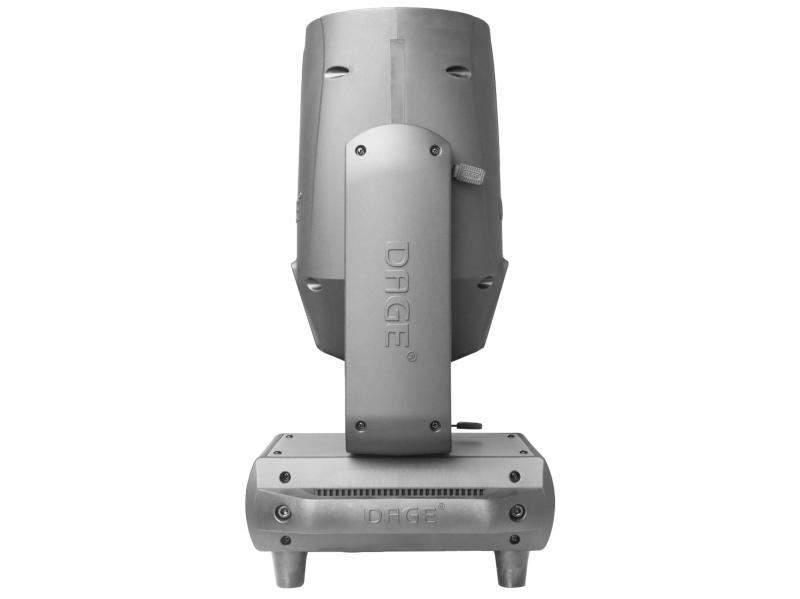

2022 Upgraded! AK-550 OPTIMUS PRIME Beam 380W - DAGE Stage Lighting - Stage Moving Head Light Manufacturer-DAGE Stage Lighting

Overview

★This is DAGE exclusive product: with R & D and design patents, any Infringement and Counterfeits will be prosecuted.★

ADVANTAGES:

1. The king of the beam 380W in the field! Very powerful & High penetration.

2. DAGE customized lamp Philips platinum 380W, high quality & extremely stable.lamp life up to 4000h.

3. DAGE special Optical lens, the dia.up to 168mm, beam angle: 1.4°

4. Added 4 glass gobo for enriching the beam effect, soft, fresh & vivid color.
5. Fantastic & colorful honeycomb prism+ 8 facet prism, with prism auto-focusing function.
6. Sensitive & high speed, 3-phase motor for X/Y movement, positioning accuracy.

7.With RDM system, can set up the DMX address on the controller directly

8. With 2 clamps fixed on the light base, easy for mobile shows.

9.Fixed battery for the LCD display, set up DMX address without electronic is available.

OPTICAL SYSTEM

DAGE Customized Philips platinum 380W lamp, 4,000 hrs life
Italian heat-protecting glass, good dissipation
Optical lens’s dia.up to 168mm, DAGE special Optical lens structure.
beam angle: 1.4° Auto beam and prism focusing function

DISPLAY SYETEM

Display mode 20 million pixel LCD touch screen, with sleep mode function
Lamp’s life & device using time is displayable
With Automatic error tested function
LCD touch and knob control mode

CONTROL SYSTEM

International standard DMX512
22 control channels
DMX, random, auto, voice and sleep mode
Using high-tech constant current board, 36V / 12V voltage
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standard

DATA INTERFACE

3-pin male and female connector
2. 3-pin combines 5-pin male and female connectors

POWER SYSTEM

650w, power fluctuations (± 50W) works normally
AC90－240V/50-60HZ
Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, AC voltage mode
Ground wiring in accordance with international standards
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standard

POWER INTERFACE

Three-pin male and female data interface, dual hand in hand power interface

STROBE SYSTEN

Independent double shutter device, 0-14 times/s
0-100% linear dimming
The lamp power is automatically reduced by 30% when it turns off in 5 seconds
Remote control switch and boot light function for bulb, default as remote control

COLOR SYSTEM

Imported Italian specialty high temperature materials, Germany's high-tech coating technology
1 fixed color wheel, 10 colors+open+CTO
6 color Rainbow wheel
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect
Automatic error correction at any angle with hall, magnet positioned

GOBO SYSTEM

1 metal gobol wheel: 9 gobo+ 4 glass gobo +open, 4 class adjustable beam angle, enabling water,
shake, slow-fast rotation effect
Imported Italian specialty refractory metal materials
Automatic error correction at any angle with hall, magnet positioned

FROST SYSTEM

Frost setting: Independent single-sided high penetration frost lens
Frost effect: Various changes of frost effects
Frost angle: The largest is 50°

PRISM SYSTEM

Prism Material: Italian heat-protecting glass. Germany's high-tech coating technology
Prism structure: 8,24 Honeycomb prism, can overlap 32 Honeycomb prism effect at the same time
Rotating angle is adjustable. The largest prism angle is 80°

COOLING SYSTEM

Excellent aluminum material, good heat dissipation and light weight
Fan Qty: 6pcs
Thermal protection: Built-in overheating protection

ROTATION SYSTEM

XY motor: Fast and quiet 3-phase motor
XY position: Encoder& Hall components position and advanced scanning memory function
Pan:540° (16/32 bit)
Tilt 270 ° (16/32 bit)

size and weight

Body size: 30 × 33 × 58.5 (cm), net weight: 20.5 kg
Carton size: 67× 41.5× 42(cm) , G/W: 25 kg
Flight case 2 in 1: 85× 44× 73(cm) , G/W: 74 kg
Lighting attachment:
1pc User manual; 1pc insurance rope; 1 pair powercon; ; 2 aluminum alloy lamp hooks; 3 meters of signal cable; 1.5 meters of power cable.

REMARKS: DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
