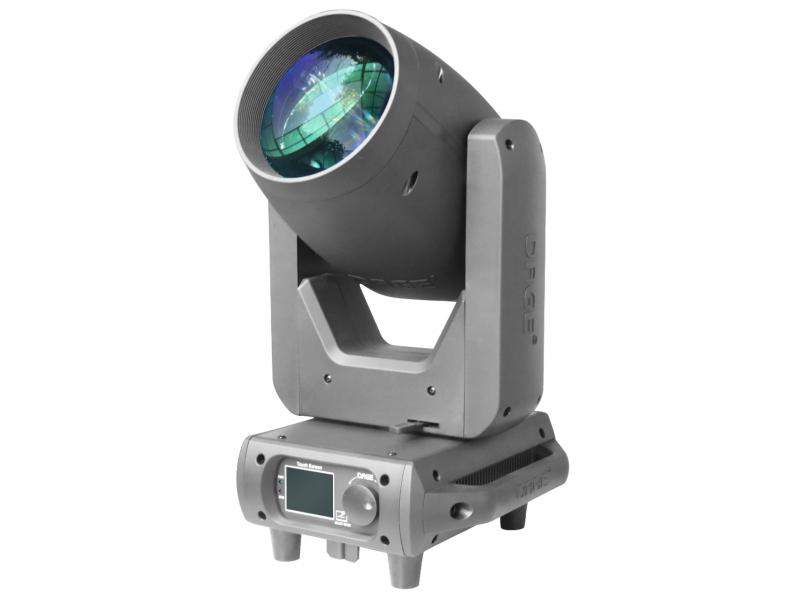

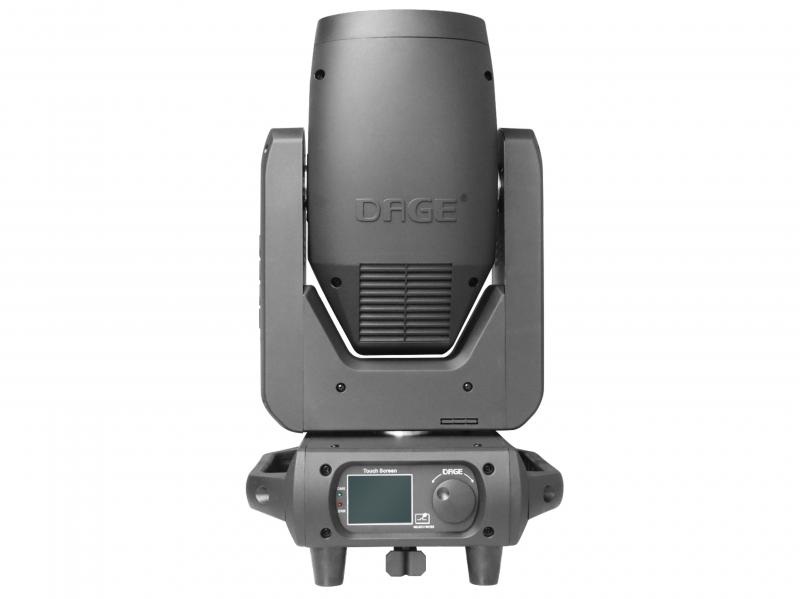

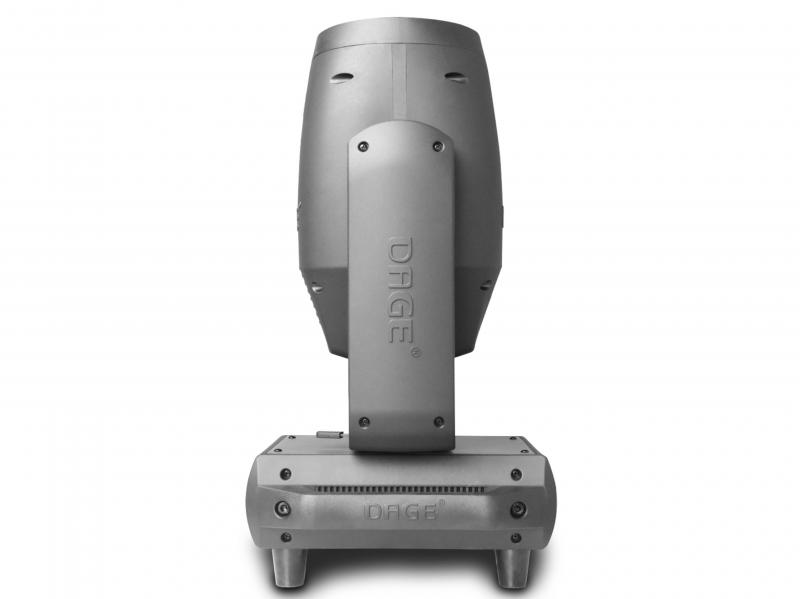

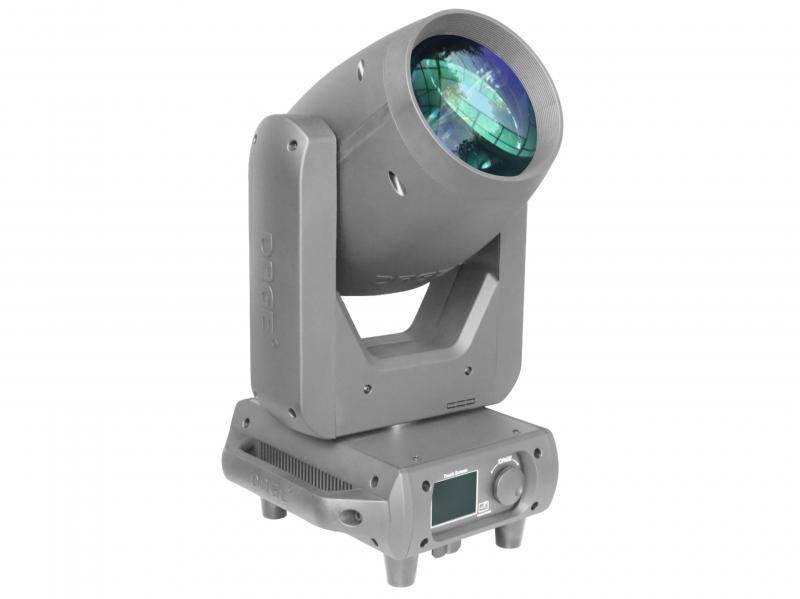

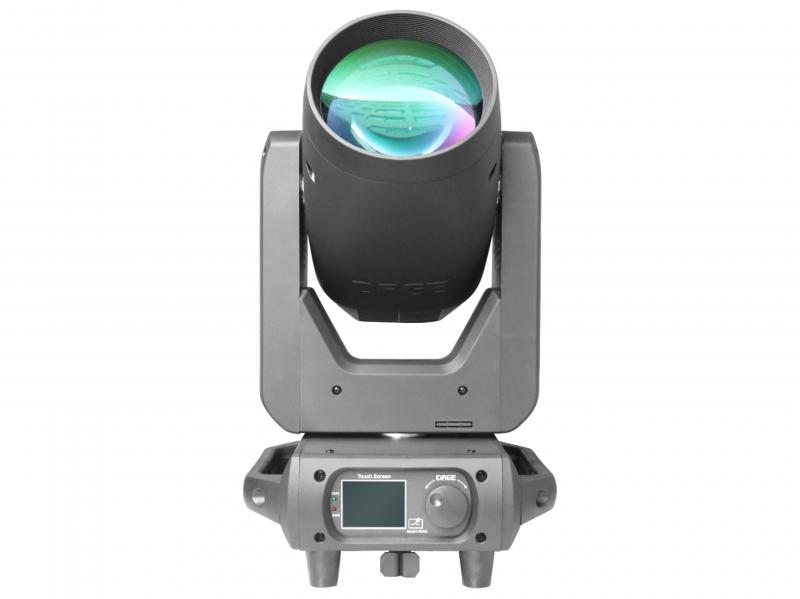

AK-450 Bumblebee 300W Beam Light - DAGE Stage Lighting - Stage Moving Head Light Manufacturer-DAGE Stage Lighting

Overview

★This is DAGE exclusive product: with R & D and design patents, any Infringement and Counterfeits will be prosecuted.★

MAIN FEATURES:

The most cost-effective beam light!
Lum:165,000Lux @ 22mm, Optical output lens up to 160mm.
Intensive, powerful & amazing beam,patent compact deign.
Reflecting fast and sensitive, strong anti-interference ability.
450w 380v integrated power supply, 36V, 24V, 12V dedicated voltage, with super accurate positioning.
color wheel: 10 colors+CTO+open, fixed gobo wheel: 9 metal +4 glass gobo+open
Fantastic & colorful honeycomb 8+24 facet prism
Sensitive & high speed, 3-phase motor for X/Y movement
The integrated folding hooks, the built-in battery is not powered to encode the address, the RDM console can encode the address code, and the prism automatic adjustment function is convenient and fast.

OPTICAL SYSTEM

DAGE Customized Philips 300W, 8000k, 5000hs life
Optical lens dia. Up to 160mm, the beam uniform, sharpy, bright
beam angle: 1.5-50° ,(include prism &frost)
Reflect bowl is coated with multi-layer, efficiency and reflective coating
Italian heat-protecting glass, good dissipation

DISPLAY SYETEM

Display mode: 20 million pixel color LCD touch screens; built -in self -charged buffer batteries, edit menu in the state without electricity; screens can display positive, upside down, and background brightness adjustment; it can display the using time of bulb and fixture. With Automatic error tested function.
Control mode: 1. Touching screen 2. Turn by rolling wheel.
Debugging device: In order to facilitate the use of manufacturers and users, you can enter through the advanced settings of the menu and password to debug the functions of the horizontal, vertical, focus, strobe, color wheel, gobo wheel, and prism plate.

CONTROL SYSTEM

International standard DMX512
22 control channels.
DMX, random, auto, voice mode.
Using high-tech constant current board, 36V / 12V voltage
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standard
3 XLR or 5 XLR In&Out options

POWER SYSTEM

450W, power fluctuations (± 50W) works normally
AC90-260V, 50-60HZ,
Using high-tech constant current power board, first-class brand PCB components, AC voltage mode
Ground wiring in accordance with international standards
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standard

STROBE SYSTEM

Independent double shutter device, 0-14 times/s
0-100% linear dimming
The lamp power is automatically reduced by 30% when it turns off in 5 seconds
Remote control switch and boot light function for bulb, default as remote control

COLOR SYSTEM

1 color wheel: 10 colors+linear CTO+open
Imported Italian specialty high temperature materials, Germany's high-tech coating technology
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect
Automatic error correction at any angle with hall, magnet positioned

GOBO SYSTEM

1 fixed gobo wheel: 9 metal +4 glass gobo+open
enabling water, shake, slow-fast rotation effect
Imported Italian specialty refractory metal materials
Automatic error correction at any angle with hall, magnet positioned

FROST SYSTEM

Frost setting: Independent single-sided high penetration frost lens
Frost effect: Achieved various changes of frost effects from color and gobo wheels
Frost angle: The largest is 50°

PRISM SYSTEM

Prism Material: Italian heat-protecting glass. Germany's high-tech coating technology
Prism structure: Unique honeycomb 24 & 8 facet prism, honeycomb+ 8 facet prism, can overlap 32 prism effect at the same time
Rotating angle is adjustable. The largest prism angle is 50°
Auto-focusing

COOLING SYSTEM

Excellent aluminum material, good heat dissipation and light weight
Number of fans: The base of the lamp is set with a silent cooling fan; the light bulb system is set with 4 silent fans, the fan is intelligently regulated, and the heat dissipation is completely controlled intelligently according to the use status and requirements of the light bulb to ensure that the entire lamp body is always kept within the predetermined temperature range.
Thermal protection: Built-in overheating protection

ROTATION SYSTEM

XY motor: Fast and quiet 3-phase motor
XY position: Encoder& Hall components position and advanced scanning memory function
Pan:540°（16/32 bit)
Tilt 260 °（16/32 bit)

LIGHTING DESIGN

Metal Plate: creative high quality raw material
Housing design: user-friendly, nice looking, tough and neat

Remarks: We do our best to provide you with accurate and comprehensive product information. Product design specifications are subject to change without prior notice. Please refer to the actual product for details. Dage Lighting reserves the right of final interpretation.

Size and weight

Fixture size: 310 × 320 × 580 (mm) N/W: 18.5 KG
Carton size: 680×410×420 (mm), GW: 25 KG
Flight case size 2in1: 85×44×73 (mm) , gross weight: 72KG

Packaging

Optional waterproof and shockproof flight case or carton packaging.

Accessories

1 manual; 1 safety wire; one 3m signal cable; one 1.5m power cable, with the 2 clamps fixed on the light base.

REMARKS: DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
