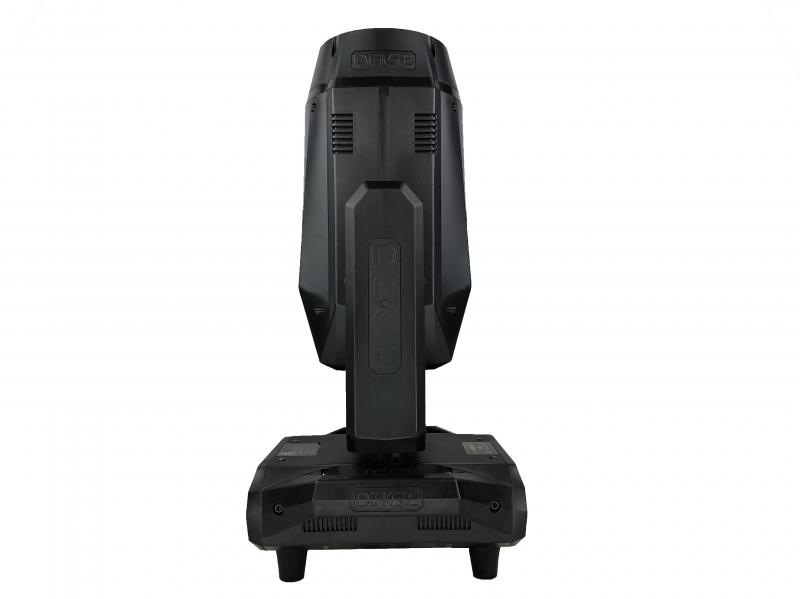

FK-3820 380w Beam Moving Head Light

MAIN FEATURES:
1. Fantastic & colorful honeycomb prism+ 8 facet prism, with max. 80° prism angle, and prism auto-focusing function
2. 1 color wheel 14 colors+white+CTO, 1 gobo wheel 13 gobo+white
3. Sensitive & high speed, 3-phase motor for X/Y movement
4. Top quality in China, life-long maintain (Lamp with 6 months warranty)

5.With RDM system, can set up the DMX address on the controller directly

6.Fixed battery for the LCD display, can set up DMX address without connected to the power supply

7. With 2 clamps fixed on the light base, easy for mobile shows

OPTICAL SYSTEM

Osram 380w lamp, CT 7800-3200K, 1500 hrs life
Italian heat-protecting glass, good dissipation
Optical lens dia. 145mm, the beam uniform, sharpy, bright
2-50° beam and frost angle
Auto beam and prism focusing function

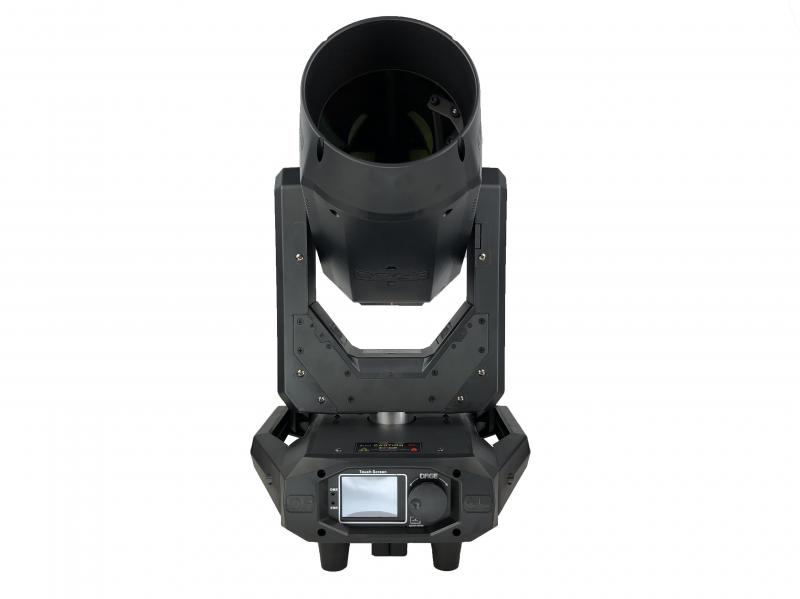

DISPLAY SYETEM

Display mode 20 million pixel LCD touch screen, with sleep mode function
Lamp’s life & device using time is displayable
With Automatic error tested function
LCD touch and knob control mode

CONTROL SYSTEM

International standard DMX512
20 control channels
DMX, random, auto, voice and sleep mode
Using high-tech constant current board, 36V / 12V voltage
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standard

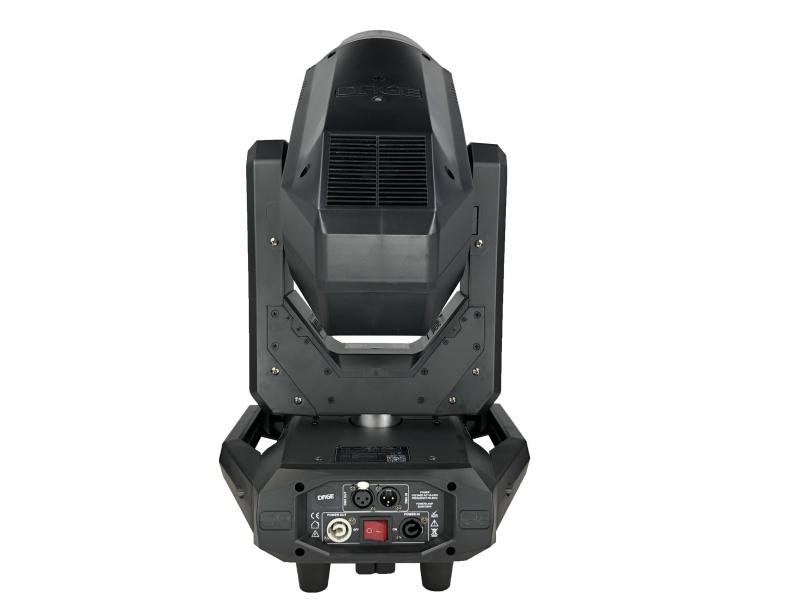

DATA INTERFACE

3-pin male and female connector
2. 3-pin combines 5-pin male and female connectors

POWER SYSTEM

600w, power fluctuations (± 50W) works normally
AC110－240V/50-60HZ
Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, AC voltage mode
Ground wiring in accordance with international standards
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standard

POWER INTERFACE

STROBE SYSTEN
Independent double shutter device, 0-14 times/s
0-100% linear dimming
The lamp power is automatically reduced by 30% when it turns off in 5 seconds

Remote control switch and boot light function for bulb, default as remote control

Three-pin male and female data interface, dual hand in hand power interface

COLOR SYSTEM

Imported Italian specialty high temperature materials, Germany's high-tech coating technology
14 color +open+CTO
6 color Rainbow wheel
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect
Automatic error correction at any angle with hall, magnet positioned

GOBO SYSTEM

13 metal gobos + open, 4 class adjustable beam angle, enabling water, shake, slow-fast rotation effect
Imported Italian specialty refractory metal materials
Automatic error correction at any angle with hall, magnet positioned

FROST SYSTEM

Frost setting: Independent single-sided high penetration frost lens
Frost effect: Various changes of frost effects
Frost angle: The largest is 50°

PRISM SYSTEM

Prism Material: Italian heat-protecting glass. Germany's high-tech coating technology
Prism structure: 8,24 Honeycomb prism, can overlap 32 Honeycomb prism effect at the same time
Rotating angle is adjustable. The largest prism angle is 80°

COOLING SYSTEM

Excellent aluminum material, good heat dissipation and light weight
Fan Qty: 6pcs
Thermal protection: Built-in overheating protection

ROTATION SYSTEM

XY motor: Fast and quiet 3-phase motor
XY position: Encoder& Hall components position and advanced scanning memory function
Pan:540° (16/32 bit)
Tilt 270 ° (16/32 bit)

LIGHTING DESIGN

Metal Plate: Creative high quality raw material
Housing design: user-friendly, nice looking, tough and neat

REMARKS: DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
