Overview

OVERVIEW

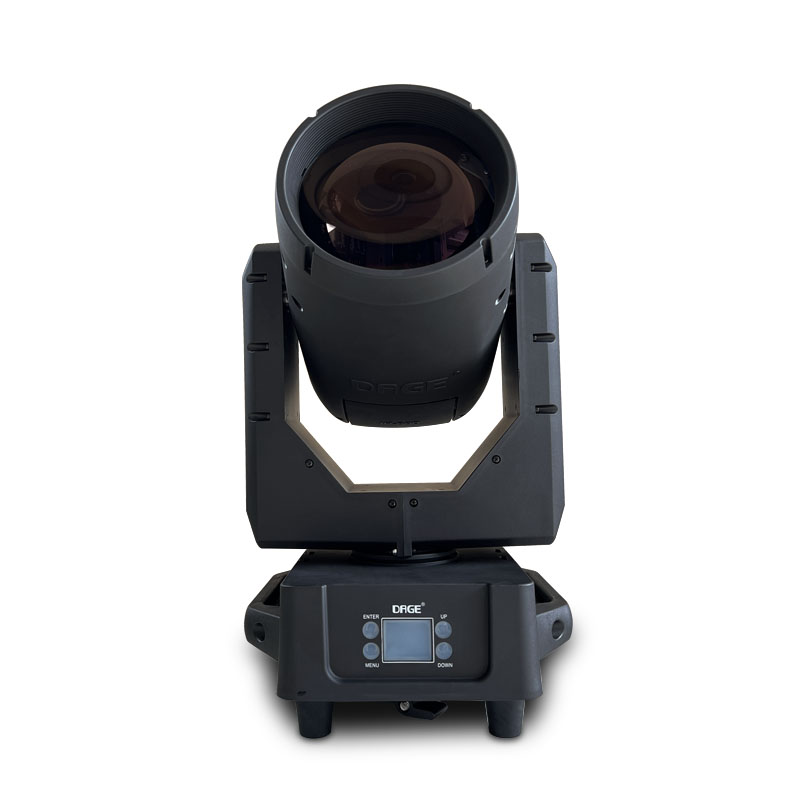

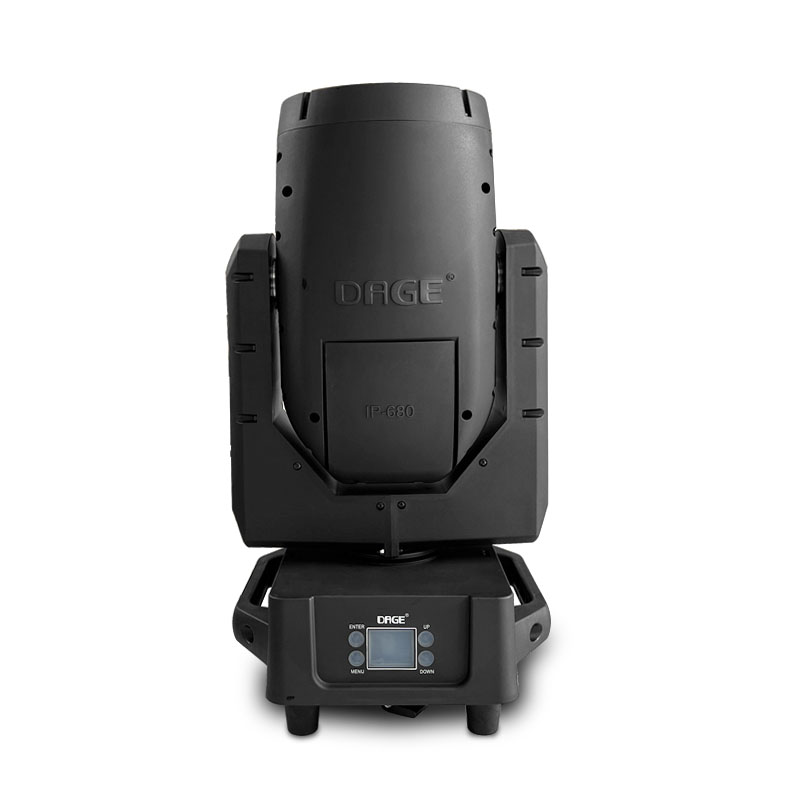

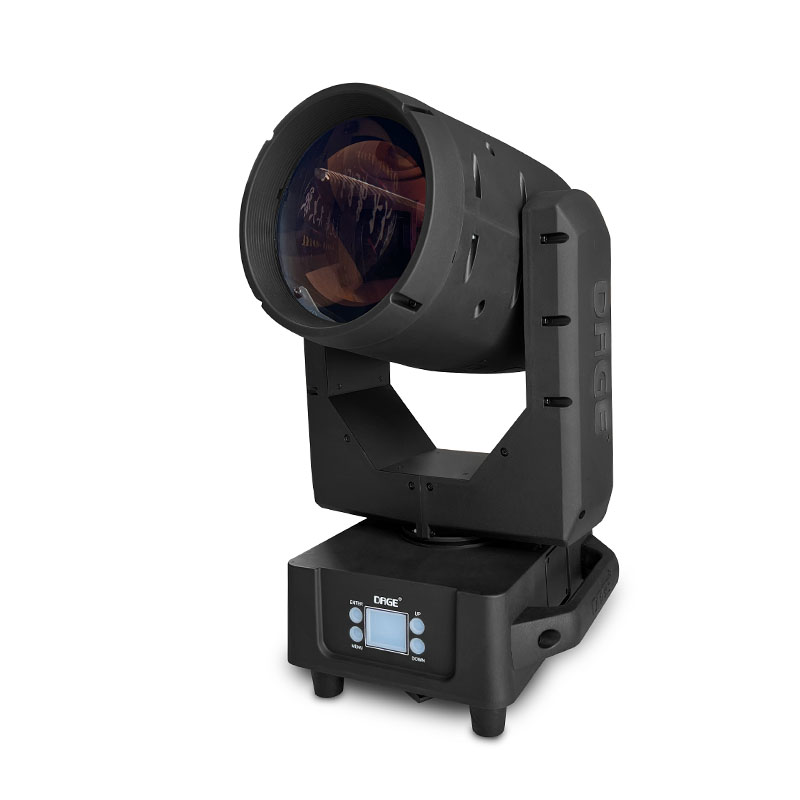

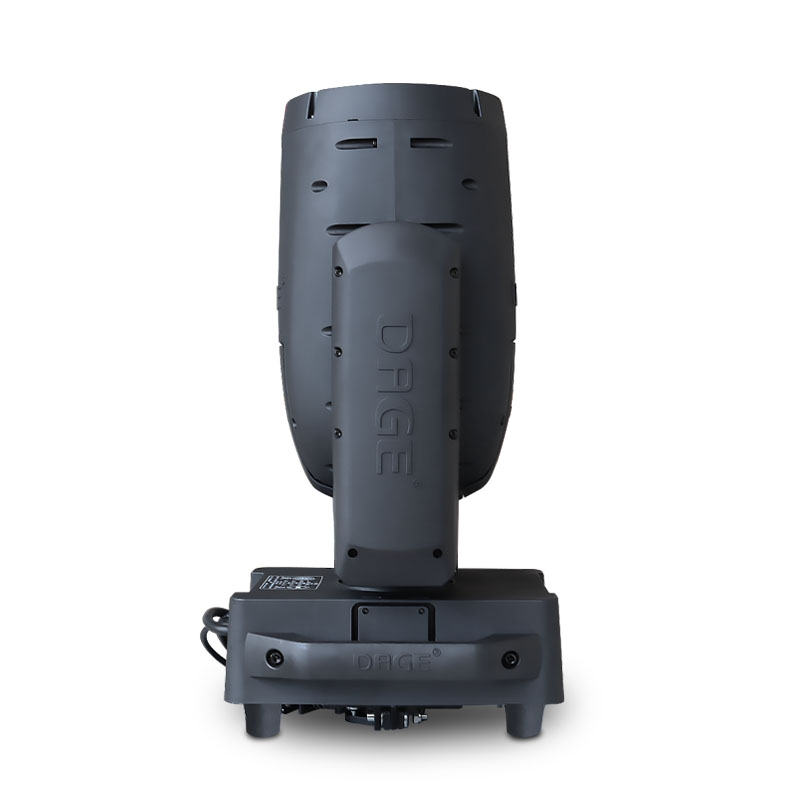

DAGE IP-680 is a compact, high luminous efficiency outdoor beam light. A ideal fixture for outdoor large-scale performances, tour concerts, landscape projects and different type music events.The optical lens’ diameter 186mm, beam angle 1.2° delivering bigger, bolder & brighter beam effect.
Engined by DAGE proprietary developing internal hardware and software, more silent. The XY axis adopts the advanced magnetic coding positioning provides excellent stability and amazing sensitivity. 1 fixed gobo wheel, 1 Color wheel, independent: 4+4 prism and 6+6 prism, CTO color temperature 2,200K-6,500K, creating captivating beams of light from warm to cold, with RDM for remote addressing. Fixed battery for the LCD display, set up DMX address without electronic is available. Linearly dimming from 0-100% , brightness form dark to bright adjustable.

With DAGE 19 years professional quality expertise, relying on rich and superior hardware facilities and production processes, the performance and quality of IP-680 Waterproof beam 420W remain consistent, with unique charm and endless possibilities.

OPTICAL SYSTEM

Light Source : OSRAM 420W, 4,000 hours
Color temperature: 7800k
beam angle: 1.2° Auto beam and prism focusing function
Optical lens’s dia.186mm, DAGE special Optical lens structure.
Heat protection glass:Italian special high-temperature resistant materials, sourced from Germany's high-tech coating technology, ensuring sufficient insulation and transparency of the lighting fixtures.
Electronic focusing: Ultra smooth adjustment of focal length, with clear range that can be adjusted freely. The unique optical path structure makes the beam feel stronger and brighter.

DISPLAY SYETEM

Display mode: 20 million pixel color LCD screen;
Built in self charging battery, edit menu when no power is available;
The screen can display upright or inverted.
Detection device: When the light fixture malfunctions, a red light alarm will appear, indicating the problem of the malfunction, convenient for product maintenance.

CONTROL SYSTEM

International standard DMX512
18 control channels
DMX, random, voice mode
Using high-tech constant current PCB board, 36V / 24V voltage.
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standard

POWER SYSTEM

650w, power fluctuations (± 50W) works normally
AC90－260V/50-60HZ
Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, AC voltage mode
Ground wiring in accordance with international standards
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standard

COLOR SYSTEM

Imported Italian specialty high temperature materials, Germany's high-tech coating technology
1 fixed color wheel, 11 colors+open+CTO

Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect
Automatic error correction at any angle with hall, magnet positioned.

COOLING SYSTEM

Heat dissipation structure: integrated dual nozzle heat dissipation system
Fixture material:Excellent aluminum material, good heat dissipation and light weight
Number of fans: Install a silent cooling fan on the lamp base; The light bulb system is equipped with four silent fans.
Thermal protection: Built in overheating protection, fan automatically tracks temperature, intelligent adjustment, keeping all components of the lamp in a lower temperature environment, which can extend the service life.

ROTATION SYSTEM

XY motor: Fast and quiet 3-phase motor
XY position: The XY axis adopts the advanced magnetic coding positioning provides excellent stability and amazing sensitivity.
X-axis angle: 540°, 16/32-bit, accuracy 2.62 °/step, fine accuracy 0.018 °, rotation 2.1 sec.
Y-axis angle: 260°, 16/32-bit, accuracy of 2.12 °/step, fine accuracy of 0.016 °, rotation 1.2 sec.
