Overview

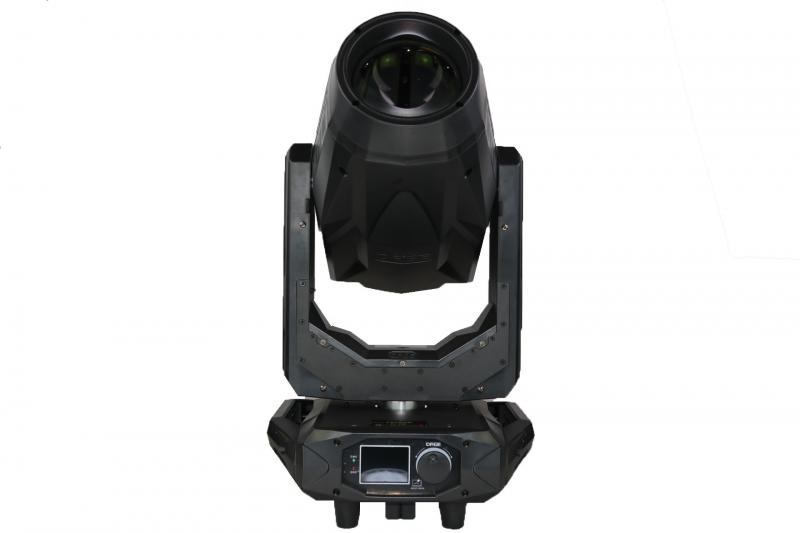

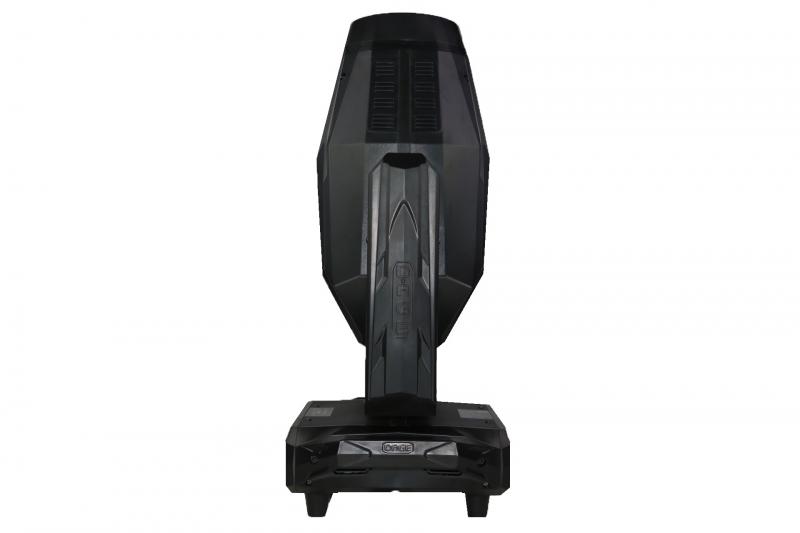

HM-3826 GIANT BEAM/SPOT/WASH 3 IN 1 380W


MAIN FEATURES:

HM-3826 GIANT is a high-end version beam/spot/wash 3 in 1 380W with CTO moving head light. It integrates overseas & Chinese high-technology, top-class quality material, DAGE unique, admirable optical lens.

It equipped with: Original OSRAM platinum 380W, 26 DMX channels, RDM function, folding clamps, 8/6/24/32 prism in 1! Amazing linear zoom 2-80°.Automatic focusing, makes the beam & prism always in best effect. 1 color wheel, 4 gobo wheels, the rotating gobo and animative gobo overlapping will create more unique & amazing spot effects. Wonderful water-wave washing effect, the angle is adjustable, extremely multi-function and inventive!


OPTICAL SYSTEM
Original OSRAM platinum 380W, 8000K
Italian heat-resistant glass material, Germanic coating technology, good dissipation
Optical lens dia. 128mm, the beam angle 2° makes the beam super uniform, sharp, bright.
Linear zoom: 2-80° (Including spot, frost & prism), in 2° the beam effect is the best
Automatic focusing, makes the beam & prism always in best effect
DISPLAY SYSTEM
Display mode 16 million pixel LCD touch screen, with sleep mode function
Lamp’s life & device using time is displayable
With Automatic error tested function
Two control mode: touch-wheel mode and non-contact, convenient to operate and read menu
CONTROL SYSTEM
International standard DMX512
26 control channels
RDM long-distance address editing available
DMX, random, auto, voice and sleep mode
Using high-tech constant current board, 36V / 24V voltage
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standards

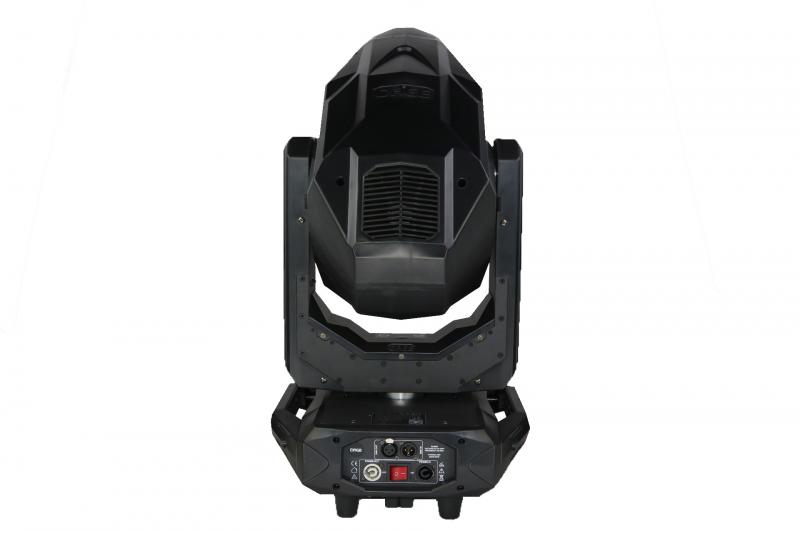

DATA INTERFACE
3-pin male and female DMX signal connectors
Black & white power input & output connectors
POWER SYSTEM
Rated power: 600W, AC110－240V/50-60HZ
constant current PCB board, 600W/380V ballast, power fluctuations (± 50W) works normally
Using high-tech constant current power board,  first-class brand PCB components, SMT processing technology, and AC voltage mode
Ground wiring in accordance with international standard
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standards
STROBE SYSTEN
Independent double shutter, 0-14 times/s
0-100% linear dimming
The lamp power is automatically reduced by 40% when it turn off in 5 seconds
Remote control switch and boot light function for bulb, default as remote control
COLOR SYSTEM
CTO function: 2000-5500K
Color wheel: 1 color wheel with 8 colors + open
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect. Automatic error correction at any angle with hall, magnet positioned
Imported Italian specialty heat resisting materials, Germanic high-tech coating technology
GOBO SYSTEM
4 different gobo wheels
Static (metal) gobo wheel+Animated gobo
Animated(metal) gobo wheel
Metal effect gobo wheel
Rotating gobo wheel: 7 interchangeable gobo + open, the biggest angle is up to 52°
The rotating gobo and animative gobo overlapping will create more unique & amazing spot effects., rotation angle can be adjusted. Imported Italian specialty refractory metal materials. Automatic error correction at any angle with hall, magnet position
FROST SYSTEM
Frost: divided frost plate setting, high penetration frost lens
Frost effects: Various changes of frost effects combine with gobo wheel and color wheel
Frost angle: The largest is 60°
PRISM SYSTEM
8/6/24/32 prism in 1
8 independent facet prism
6 (linear) independent facet prism
24 independent facet prism
8+24 prism will create 32 prism
The prism rotating angle is adjustable, up to 80°
Prism Material: Italian heat-protecting glass. Germanic high-tech coating technology
COOLING SYSTEM
Frame material: light and excellent aluminum material, good heat dissipation
Fan Qty: 2 mute cooling fans in the bottom of the light, 3 intelligent & mute fans for the lamp cooling
Thermal protection: Built-in overheating protection, the fan’s speed will increase and decrease automatically according to the temperature
ROTATION SYSTEM
X/Y motor: Fast and quiet 3-phase motors
X/Y position: Encoder& Hall components position and advanced scanning memory function
Pan: 540°(16/32 bit),  2.5 sec.
Tilt 260 °（16/32 bit), 1.6 sec.
LIGHTING DESIGN
Metal Plate design: DADE patented, creative high quality raw material
Housing design: unique DAGE patented design, user-friendly, nice looking, tough and neat


REMARKS: DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
