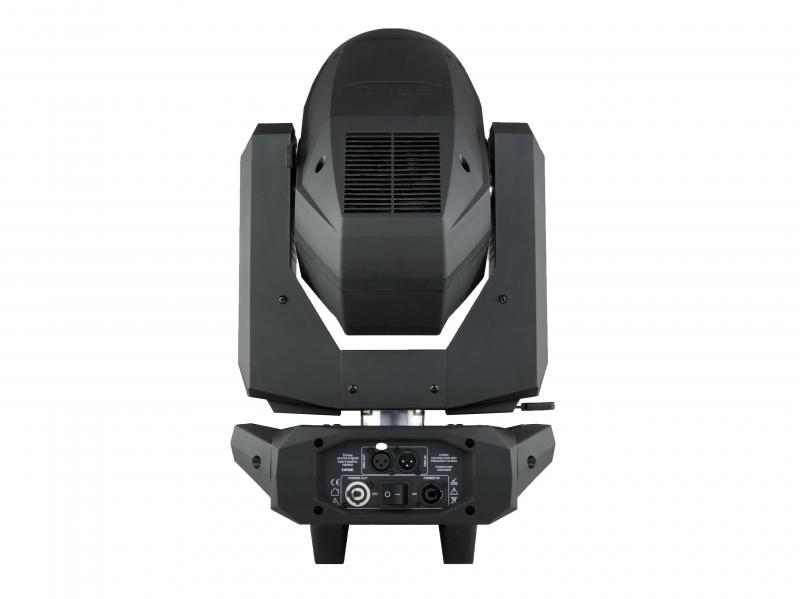

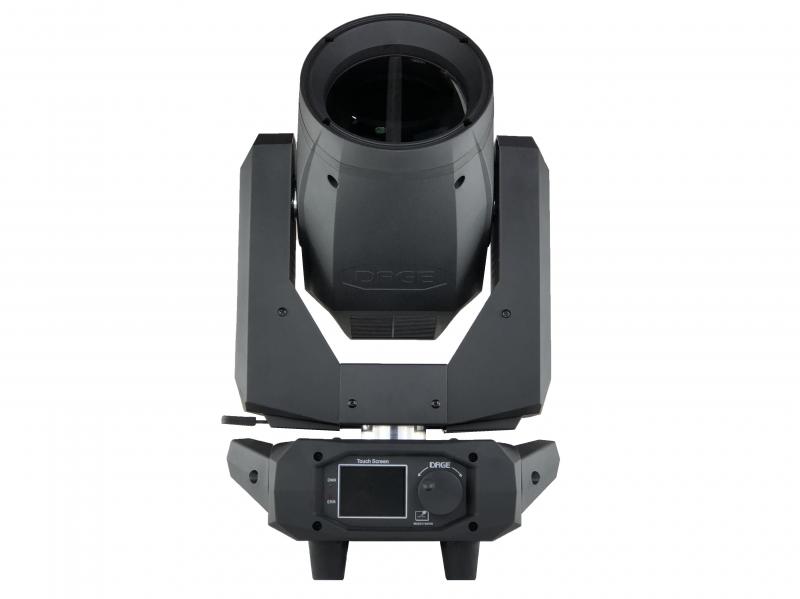

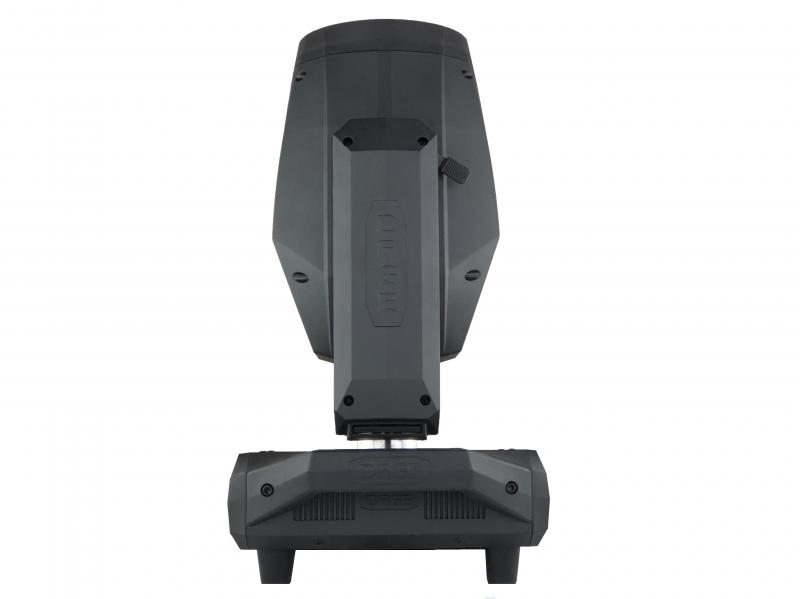

AX-2822 Super Bumblebee Beam Light 280W

MAIN FEATURES:
1. Smart and unique housing deign with casing patent
2. can beat any beam 280W, event 330W of the common model.Super intensive, sharp & high brightness beam effect
3. Fantastic & colorful honeycomb prism+ 8 facet prism
4. 1 color wheel 14 colors+white, 1 fixed gobo wheel with 13 gobos+white
5. Sensitive & high speed, 3-phase motor for X/Y movement
6. Top quality in China, life-long maintain (Lamp 6 months warranty)

OPTICAL SYSTEM

Philips 280W Philips Platinum Bulb 280W
Reflect bowl is coated with multi-layer, efficiency and reflective coating
Italian heat-protecting glass, good dissipation
Optical lens dia. 148mm, the beam uniform, sharpy, bright
Electronic focusing

DISPLAY SYETEM

Display mode 16 million pixel LCD touch screen, with sleep mode function
Lamp’s life & device using time is displayable
With Automatic error tested function
5 button menu control mode
Debug setting

CONTROL SYSTEM

International standard DMX512
22 control channels.
DMX, random, auto, voice and sleep mode.
Using high-tech constant current board, 36V / 12V voltage
Built-in high -quality magnetic components ensure stable signal transmission
Data line antifreeze, in line with CE20 / 22 standard

POWER SYSTEM

300w, power fluctuations (± 50W) works normally
AC90-260V, 50-60HZ,
Using high-tech constant current power board, first-class brand PCB components, SMT processing technology, AC voltage mode
Ground wiring in accordance with international standards
Built-in high -quality lighting power filter to ensure stable signal transmission
Power line antifreeze, in line with CE20 / 22 standard

STROBE SYSTEM

Independent double shutter device, 0-14 times/s
0-100% linear dimming
The lamp power is automatically reduced by 40% when it turns off in 5 seconds
Remote control switch and boot light function for bulb, default as remote control

COLOR SYSTEM

Imported Italian specialty high temperature materials, Germany's high-tech coating technology
14 colors + open
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect
Automatic error correction at any angle with hall, magnet positioned

GOBO SYSTEM

13 metal gobos + open, 4 class adjustable beam angle, enabling water, shake, slow-fast rotation effect
Imported Italian specialty refractory metal materials
Automatic error correction at any angle with hall, magnet positioned

PRISM SYSTEM

Prism Material: Italian heat-protecting glass. Germany's high-tech coating technology
Prism structure: Unique honeycomb & 8 facet prism, honeycomb+ 8 facet prism, can overlap 32 prism effect at the same time
Rotating angle is adjustable. The largest prism angle is 40°
Auto-focusing

ROTATION SYSTEM

XY motor: Fast and quiet 3-phase motor
XY position: Encoder& Hall components position and advanced scanning memory function
Pan:540°（16/32 bit)
Tilt 270 °（16/32 bit)

LIGHTING DESIGN

Metal Plate: creative high quality raw material
Housing design: user-friendly, nice looking, tough and neat

REMARKS: DAGE lighting reserves the right to modify the characteristics stated in this instruction manual at any time and without prior notice.
